A27008

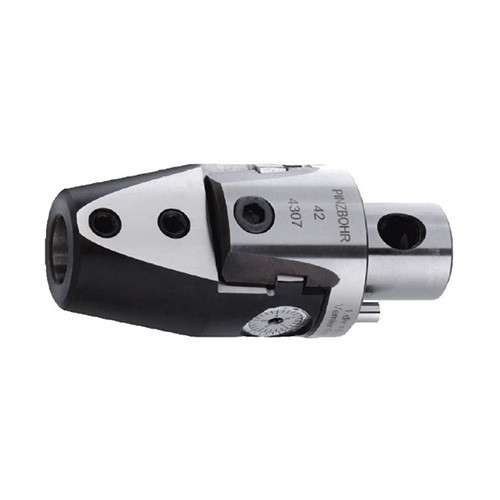

Finishing-Head for dia 5.5 - 38mm with Top-Borer boring bars

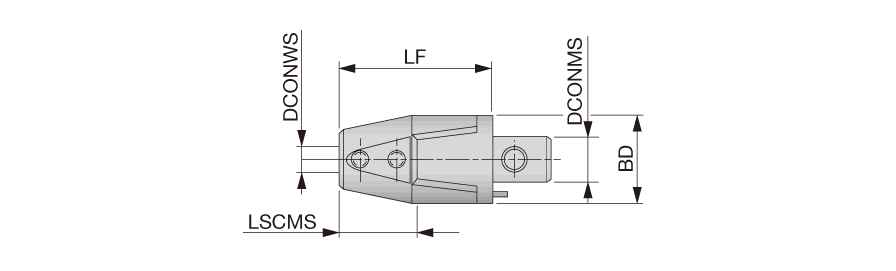

| Application | | PINZBOHR tools | | Connection Diameter Machine Side (DCONMS) | 15 mm |
| Cutting Diameter Minimum (DCN) | 5.5 mm | Measurement Type | Metric |
| Cutting Diameter Maximum (DCX) | 21 mm | Connection Diameter Workpiece Side (DCONWS) | 15 mm |
| Functional Length (LF) | 50 mm | Body Material | Steel |
| Body Diameter (BD) | 27 mm | Unit | M |
Product Features
| Family Description | Finishing-Head for dia 5.5 - 38mm with Top-Borer boring bars | COO | SPAIN |
| Remarks | PINZBOHR Boring System is a product of MYFHE,S.A. |
Shipping Info
Weight per item
0.1970
