TSV02R080A27.0-05W4.0C
Slot mill head for tangentially mounted inserts, with boss

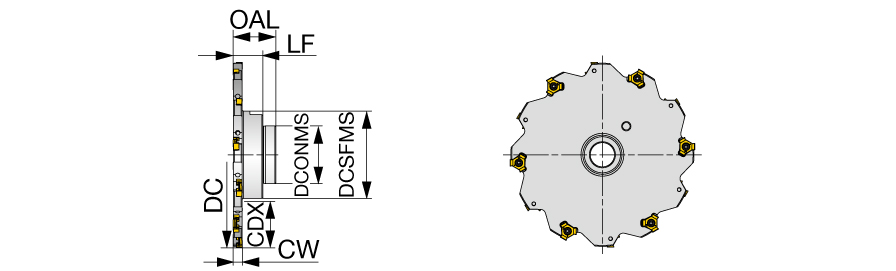

| Cutting Diameter (DC) | 80 mm | Measurement Type | Metric |
| Cutting Width (CW) | 4 mm | Tool Type | Solid carbide center cutting endmills 90 |
| Cutting Depth Maximum (CDX) | 18.5 mm | Body Material | Steel |
| Peripheral Effective Cutting Edge Count (ZEFP) | 5 | Cutting Item Count (CICT) | 10 |
| Connection Diameter Machine Side (DCONMS) | 27 mm | Functional Length (LF) | 16 mm |
| Overall Length (OAL) | 23 mm | Master Insert Identification (MIID) | TVKX020202TN-MJ |
| Application | | Slot Milling | | Unit | M |
Product Features
| Family Description | Slot mill head for tangentially mounted inserts, with boss | FamilyName | TSV-C |
| Remarks | For how to assemble the inserts to the cutter body and how to assemble the cutter body to the adapter, click on "More Info". *Note : Dedicated wrench is sold separately. If coolant isn't supplied from the end of the arbor inlay,the center bolt corresponding to the adaptor is essential for coolant supplying. | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
0.0000
Name
Disc w/Shank Indexable Slotting Cutters
FamilyName
TSV-C
BrandName
Tungaloy
Related Documentation
[Assembling the inserts] @Always use the right-hand screws for the right hand pockets and left-hand screws for the left-hand pockets. @To loosen the left-hand screw, rotate in the opposite direction to the arrow etched on the cutter body. @[Adapter for cutter head] @(1) Assemble the cutter head to the adapter while aligning the pins on the adapter with the holes on the cutting head. @(2) Assemble the center screw to fix the cutter head to the arbor.
