CTBU16-200-6U-CHP
Tool block for EFP blades, with channels for high pressure coolant.

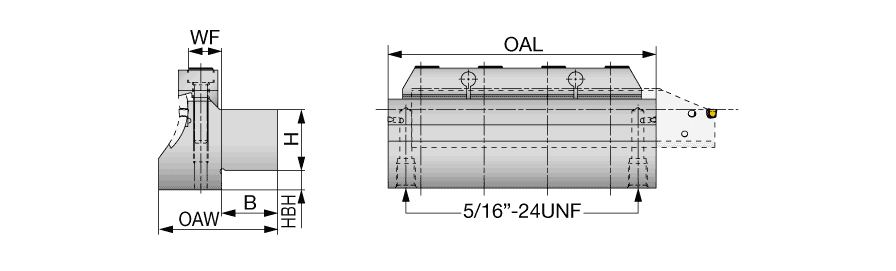

| Shank Height (H) | 1″ | Application | | Face grooving | |
| Shank Width (B) | 0.905″ | Body Material | Steel |
| Cutting Width Minimum (CWN) | 0.236″ | Tool Type | TOOL BLOCK - FOR EFP BLADES |
| Cutting Width Maximum (CWX) | 0.236″ | Cutting Direction (HAND) | Neutral |
| Overall Length (OAL) | 4.331″ | Measurement Type | Inch |
| Head Length (LH) | 0.807″ | Functional Width (WF) | 0.535″ |
| Overall Height (OAH) | 1″ | Unit | I |
| Minimum Bore Diameter (DMIN) | 7.874″ |
Product Features
| Family Description | Tool block for EFP blades, with channels for high pressure coolant. | FamilyName | CTBU-CHP for EFPR/L |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
2.5904
Name
Parting Off Indexable Holders
FamilyName
CTBU-CHP for EFPR/L
BrandName
Tungaloy
