JS25H-SEL16

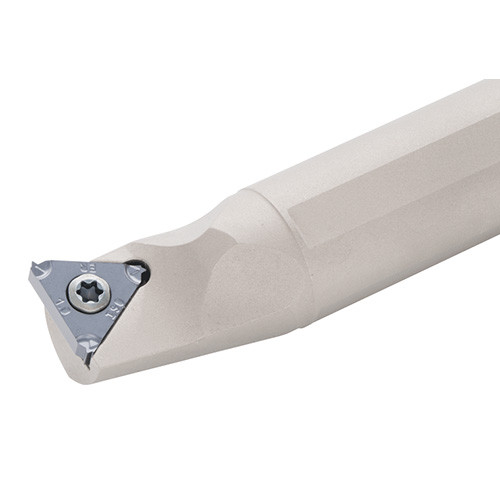

External threading round toolholders for swiss-type lathe

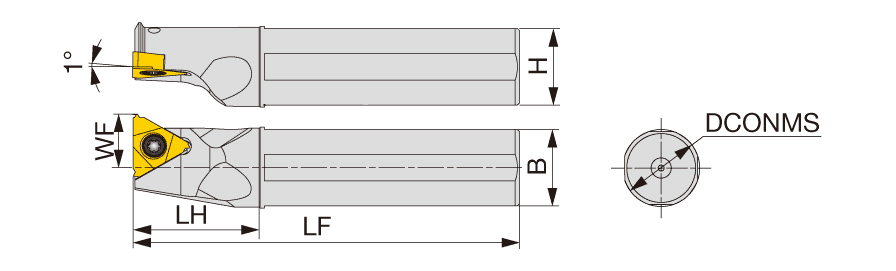

| Connection Diameter Machine Side (DCONMS) | 25 mm | Functional Width (WF) | 15.5 mm |
| Head Length (LH) | 30 mm | Master Insert Identification (MIID) | 16ERA60 |
| Overall Length (OAL) | 100 mm | Body Material | Steel |
| Shank Height (H) | 24 mm | Tool Type | External Non-Rotating Threading Tools |
| Shank Width (B) | 24 mm | Measurement Type | Metric |
| Cutting Direction (HAND) | Left Hand | Unit | M |
| Application | | Ext Threading | |
Product Features
| Family Description | External threading round toolholders for swiss-type lathe | FamilyName | JS-SER/L |
| Remarks | The right hand insert (**ER...) is used for the left hand toolholders (JS*** SEL...). | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
0.3630
Name
Laydown Threading Indexable Holders
FamilyName
JS-SER/L
BrandName
Tungaloy
