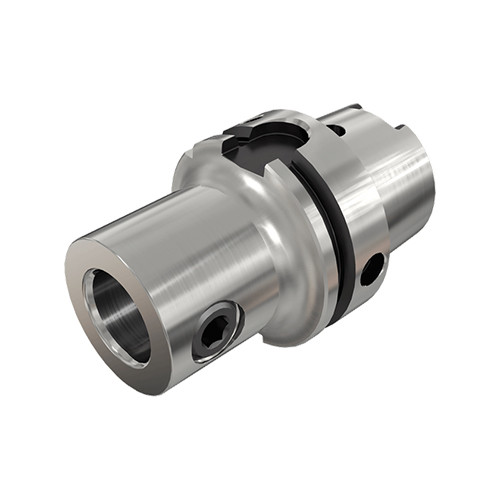

HSKA63CF4-S
TungFit quick change style modular tooling system with HSK-A shank

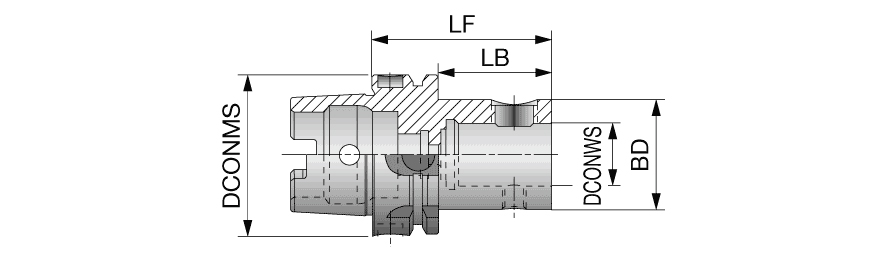

| Shank Size (SS) | 63. | Tool Type | HSK |
| Body Length (LB) | 44 mm | Overall Length (OAL) | 70 mm |
| Body Diameter (BD) | 44.5 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 63 mm | Body Material | Steel |
| Application | | Face contact interface | | Unit | M |
| Connection Diameter Workpiece Side (DCONWS) | 25 mm |
Product Features
| Family Description | TungFit quick change style modular tooling system with HSK-A shank | FamilyName | HSK A-CF (TungFit) |
| Remarks | Tightening torque: 58.8 Nm | BrandName | Tungaloy |
| COO | ISRAEL |
Shipping Info
Weight per item
0.0000
Name
Drill Chucks & Adapters
FamilyName
HSK A-CF (TungFit)
BrandName
Tungaloy
