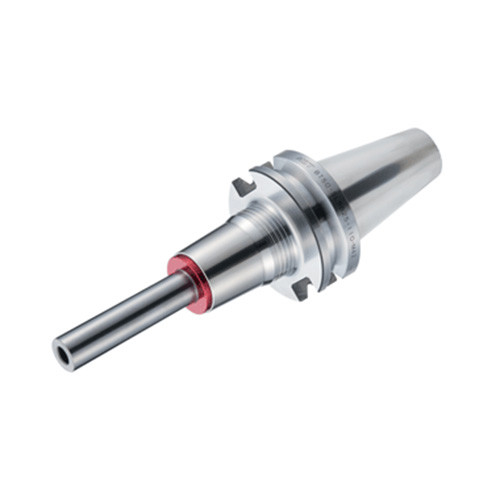

BT40-RSG 10-175-M75
TungFlex modular tooling system incorporated carbide arbor with BT shank

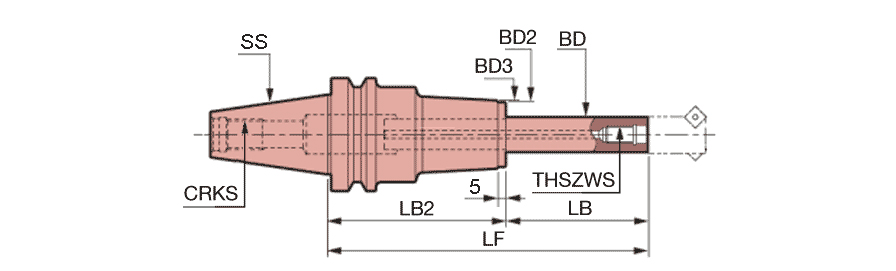

| Shank Size (SS) | 40. | Tool Type | ISO 26623-1 (CAMFIX, CAPTO) |
| Body Length (LB) | 75 mm | Overall Length (OAL) | 175 mm |
| Body Diameter (BD) | 19 mm | Measurement Type | Metric |
| Application | | Tapered shape interface | | Body Material | Steel |
| Connection Retention Knob Thread Size (CRKS) | M16 | Unit | M |
| Body Length_2 (LB_2) | 100 mm |
Product Features
| Family Description | TungFlex modular tooling system incorporated carbide arbor with BT shank | FamilyName | RED screw arbor BT (TungFlex) |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
0.0000
Name
Drill Chucks & Adapters
FamilyName
RED screw arbor BT (TungFlex)
BrandName
Tungaloy
