TID080R10-6

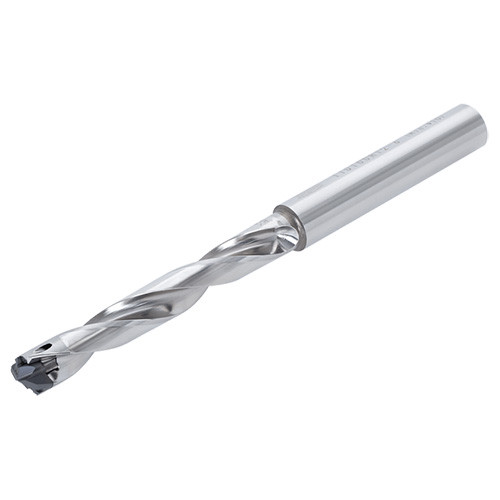

DrillMeister Indexable head drill with cylindrical shank

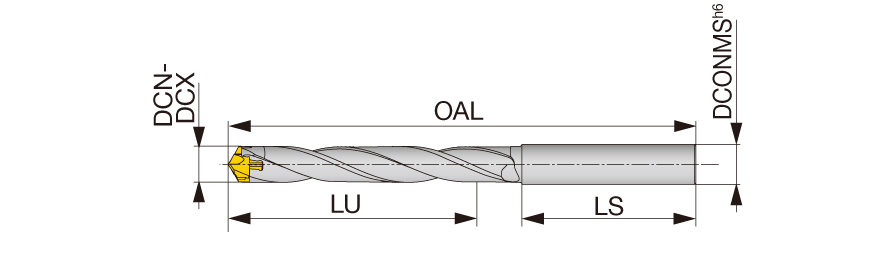

| Usable Length (LU) | 48 mm | Overall Length (OAL) | 108.75 mm |
| Application | | General Drilling | | Shank Length (LS) | 50 mm |
| Tool Type | indexable head drills | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Master Insert Identification (MIID) | DMP080 |
| Insert Seat Size Code (SSC) | 8 | Point Length (PL) | 1.2 mm |
| Cutting Diameter Minimum (DCN) | 8 mm | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 8.4 mm | Unit | M |
Product Features
| Family Description | DrillMeister Indexable head drill with cylindrical shank | COO | JAPAN |
| Remarks | Note: An overall length depends on the type of drill head which is mounted on. |
Shipping Info
Weight per item
0.0000
