DIN6987140SRKIN20X80

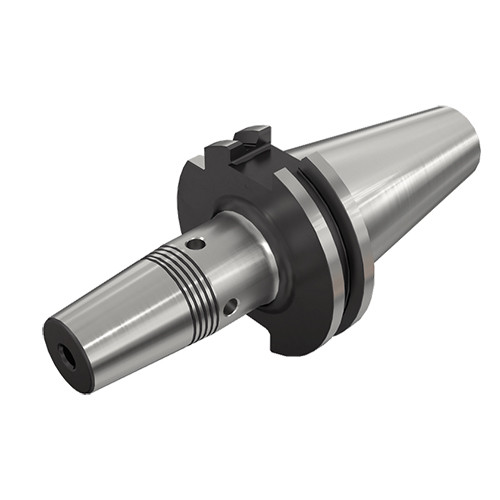

TungShrink thermal shrinking holder for carbide and HSS with DIN69871 shank

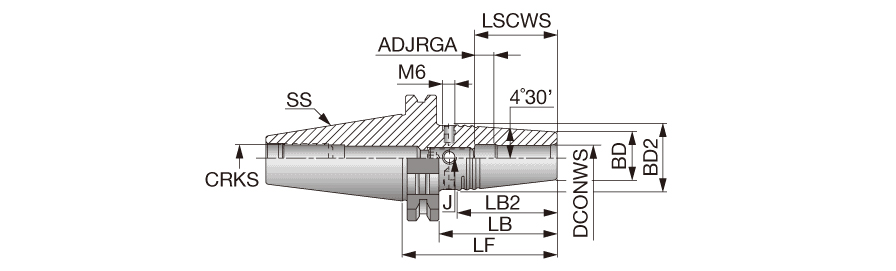

| Connection Diameter Workpiece Side (DCONWS) | 20 mm | Shank Type | Round |
| Shank Size (SS) | 40. | Application | | Tapered shape interface | |
| Body Length (LB) | 60.9 mm | Thread Designation Inside (THID) | M16 |
| Body Length_2 (LB_2) | 57 mm | Measurement Type | Metric |
| Body Diameter (BD) | 33 mm | Tool Type | DIN 69871 |
| Body Diameter_2 (BD_2) | 42 mm | Body Material | Steel |
| Overall Length (OAL) | 80 mm | Unit | M |
Product Features
| Family Description | TungShrink thermal shrinking holder for carbide and HSS with DIN69871 shank | FamilyName | DIN69871-SRKIN (TungShrink) |
| Remarks | Use only inductive heating device for SRKIN holders. | BrandName | Tungaloy |
| COO | ISRAEL |
Shipping Info
Weight per item
1.2410
Name
Shrink Fit Holders
FamilyName
DIN69871-SRKIN (TungShrink)
BrandName
Tungaloy
