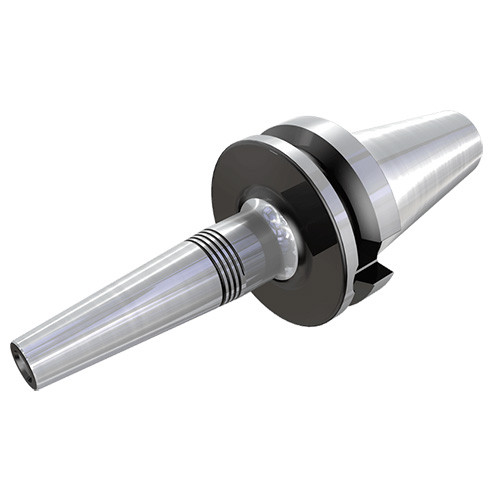

BT40SRK12X85
TungShrink thermal shrinking holder for carbide shank with BT shank

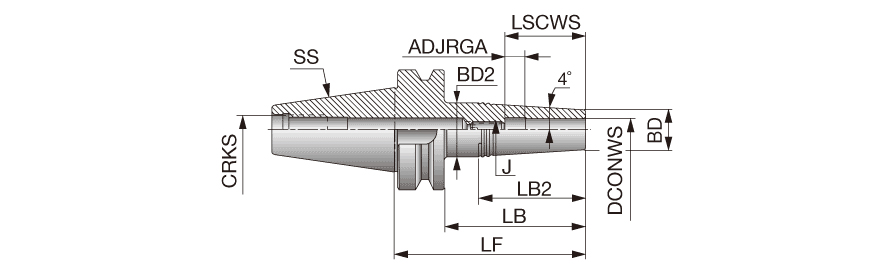

| Connection Diameter Workpiece Side (DCONWS) | 12 mm | Shank Type | Round |
| Shank Size (SS) | 40. | Application | | Tapered shape interface | |
| Body Length (LB) | 85 mm | Thread Designation Inside (THID) | M10 |
| Body Length_2 (LB_2) | 56.6 mm | Measurement Type | Metric |
| Body Diameter (BD) | 20 mm | Tool Type | BT |
| Body Diameter_2 (BD_2) | 28 mm | Body Material | Steel |
| Overall Length (OAL) | 112 mm | Unit | M |
Product Features
| Family Description | TungShrink thermal shrinking holder for carbide shank with BT shank | FamilyName | BT-SRK (TungShrink) |
| COO | ISRAEL | BrandName | Tungaloy |
Shipping Info
Weight per item
1.2650
Name
Shrink Fit Holders
FamilyName
BT-SRK (TungShrink)
BrandName
Tungaloy
