HSKFM63SRKIN18X95

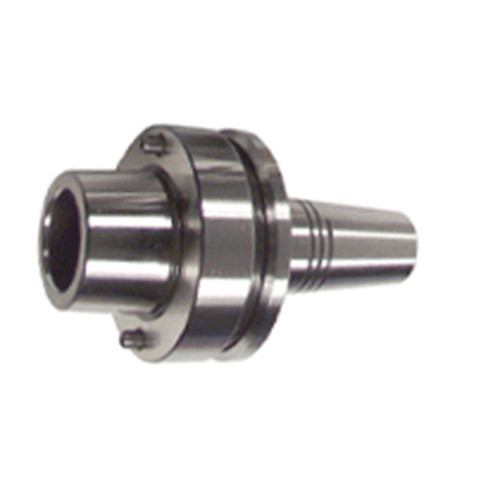

TungShrink thermal shrinking holder for carbide and HSS with HSK-FM shank

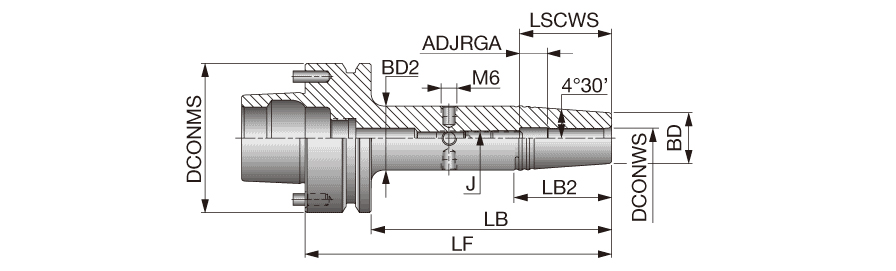

| Connection Diameter Machine Side (DCONMS) | 63 mm | Shank Type | Round |
| Connection Diameter Workpiece Side (DCONWS) | 18 mm | Application | | Face contact interface | |
| Shank Size (SS) | 63. | Thread Designation Inside (THID) | M12 |
| Body Length (LB) | 69 mm | Measurement Type | Metric |
| Body Length_2 (LB_2) | 57 mm | Tool Type | HSK |
| Body Diameter (BD) | 33 mm | Body Material | Steel |
| Body Diameter_2 (BD_2) | 42 mm | Unit | M |
| Overall Length (OAL) | 95 mm |
Product Features
| Family Description | TungShrink thermal shrinking holder for carbide and HSS with HSK-FM shank | FamilyName | HSK FM-SRKIN (TungShrink) |
| Remarks | The driving pins can be removed, turning the toolholder into a standard HSK F63 type. Use only inductive heating device for SRKIN holders. | BrandName | Tungaloy |
| COO | ISRAEL |
Shipping Info
Weight per item
0.0000
Name
Shrink Fit Holders
FamilyName
HSK FM-SRKIN (TungShrink)
BrandName
Tungaloy
