DIN6987140EM12X50

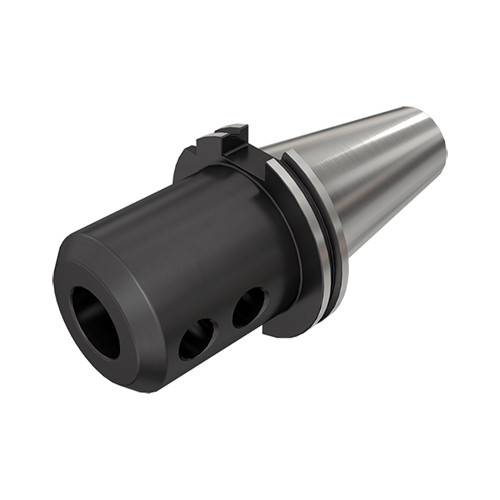

Screw locking endmill holders with DIN69871 shank

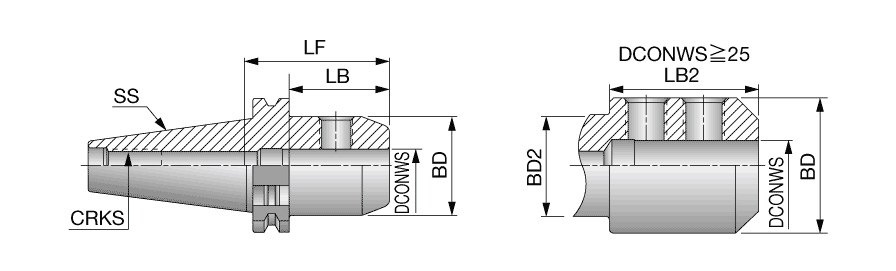

| Shank Type | Weldon | Connection Retention Knob Thread Size (CRKS) | M16 |
| Connection Diameter Workpiece Side (DCONWS) | 12 mm | Shank Size (SS) | 40. |
| Body Diameter (BD) | 42 mm | Tool Type | DIN 69871 |
| Overall Length (OAL) | 50 mm | Body Length (LB) | 30.9 mm |
| Application | | Tapered shape interface | | Body Material | Steel |
| Measurement Type | Metric | Unit | M |
Product Features
| Family Description | Screw locking endmill holders with DIN69871 shank | FamilyName | DIN69871-EM (endmill holder) |
| Remarks | Add B for coolant through the flange. | BrandName | Tungaloy |
| COO | ITALY |
Shipping Info
Weight per item
1.1190
Name
End Mill Holders
FamilyName
DIN69871-EM (endmill holder)
BrandName
Tungaloy
