| Shank Type | Weldon | Shank Size (SS) | 80. |
| Connection Diameter Workpiece Side (DCONWS) | 50 mm | Tool Type | ISO 26623-1 (CAMFIX, CAPTO) |
| Body Diameter (BD) | 98 mm | Body Length (LB) | 90 mm |
| Overall Length (OAL) | 120 mm | Body Material | Steel |
| Application | | Face contact interface | | Unit | M |
| Measurement Type | Metric |
Product Features

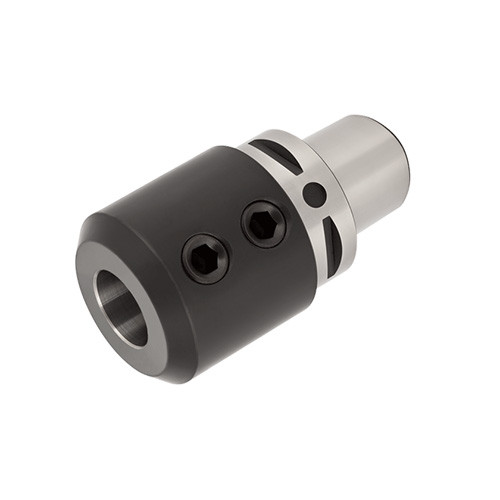

| Family Description | TungCap weldon endmill holders (DIN1835 Form B) | FamilyName | C-EM endmill holder |
| Remarks | Applicable for 7 MPa coolant | BrandName | Tungaloy |
| COO | ISRAEL |
Shipping Info
Weight per item
0.0000
Name
End Mill Holders
FamilyName
C-EM endmill holder
BrandName
Tungaloy
