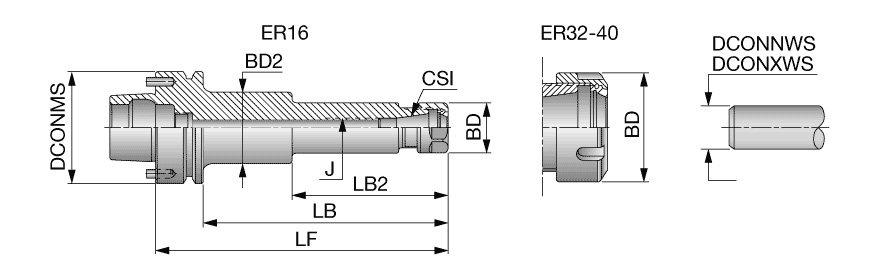

| Shank Size (SS) | HSK F 63 | Application | | Face contact interface | |
| Connection Size (CSI) | ER16 | Tool Type | HSK |
| Body Diameter (BD) | 28 mm | Connection Diameter Minimum Workpiece Side (DCONNWS) | 0.5 mm |
| Body Length (LB) | 74 mm | Connection Diameter Maximum Workpiece Side (DCONXWS) | 10 mm |
| Connection Diameter Machine Side (DCONMS) | 63 mm | Measurement Type | Metric |
| Shank Length (LS) | 25 mm | Body Material | Steel |
| Functional Length (LF) | 100 mm | Unit | M |
Product Features

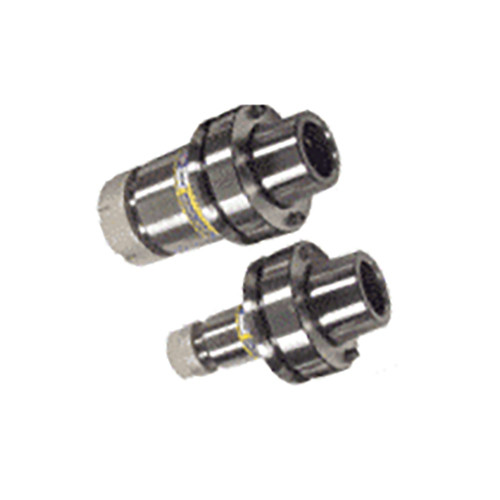

| Family Description | ER collet chucks with HSK-FM shank | FamilyName | HSK FM-ER (collet chuck) |
| Remarks | The driving pins can be removed, turning the toolholder into a standard HSK"F63″ type. | BrandName | Tungaloy |
| COO | ISRAEL |
Shipping Info
Weight per item
0.0000
Name
Collet Chucks
FamilyName
HSK FM-ER (collet chuck)
BrandName
Tungaloy
