ADJDIN6987140D70ER32

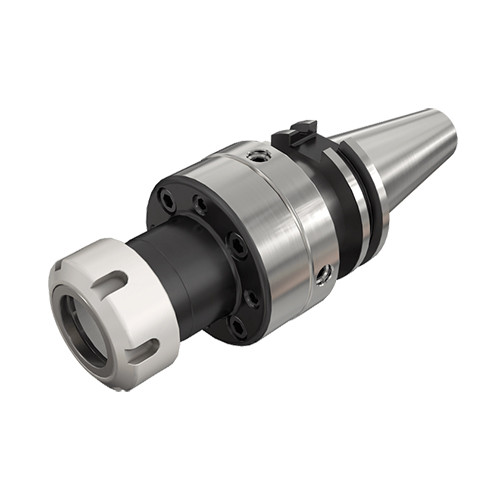

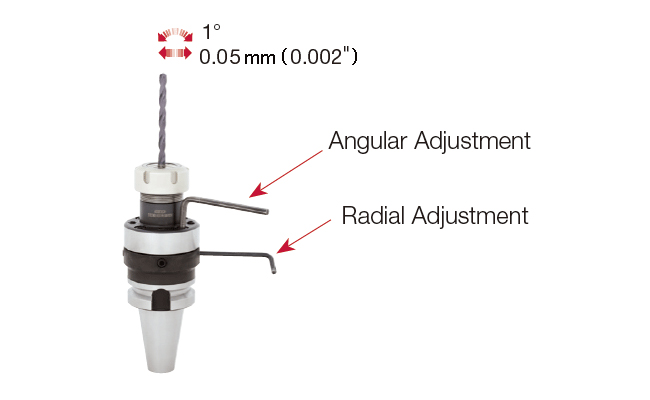

ER Collet Chucks with Center Alignment and DIN69871 Shanks

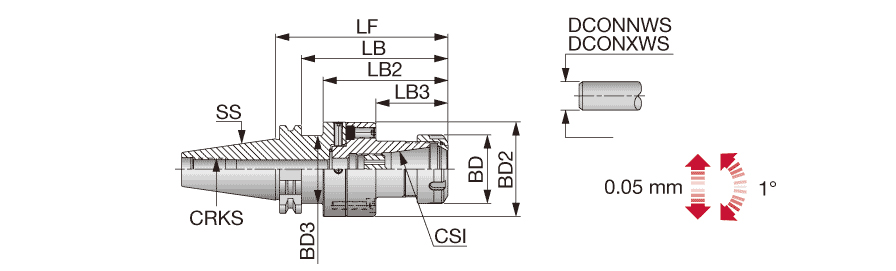

| Shank Size (SS) | SK40 | Application | | Tapered shape interface | |
| Connection Size (CSI) | ER32 | Tool Type | DIN 69871 |
| Body Diameter (BD) | 50 mm | Connection Diameter Minimum Workpiece Side (DCONNWS) | 2 mm |
| Body Diameter_3 (BD_3) | 46 mm | Connection Diameter Maximum Workpiece Side (DCONXWS) | 20 mm |
| Body Length (LB) | 105.4 mm | Measurement Type | Metric |
| Body Length_2 (LB_2) | 89.5 mm | Body Material | Steel |
| Shank Length (LS) | 68.4 mm | Unit | M |
| Functional Length (LF) | 124.5 mm |
Product Features
| Family Description | ER Collet Chucks with Center Alignment and DIN69871 Shanks | FamilyName | ADJ DIN69871-ER collet |
| COO | ISRAEL | BrandName | Tungaloy |
Shipping Info
Weight per item
2.3700
Name
Collet Chucks
FamilyName
ADJ DIN69871-ER collet
BrandName
Tungaloy
