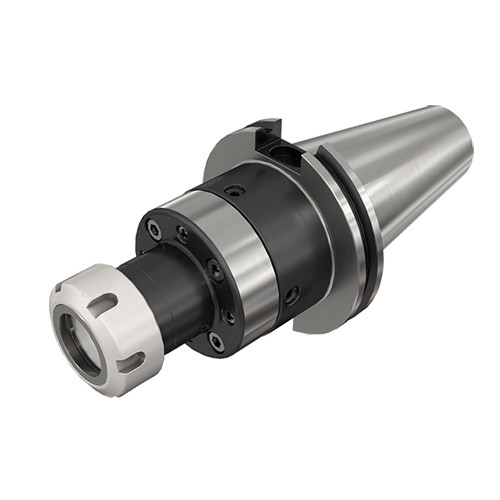

ADJ CAT50 D2.756 ER32

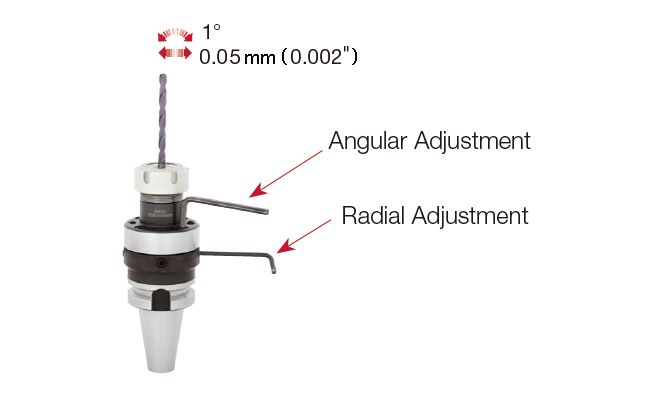

DIN 6499 ER center alignment collet chuck holder with a Caterpillar tapered shank.

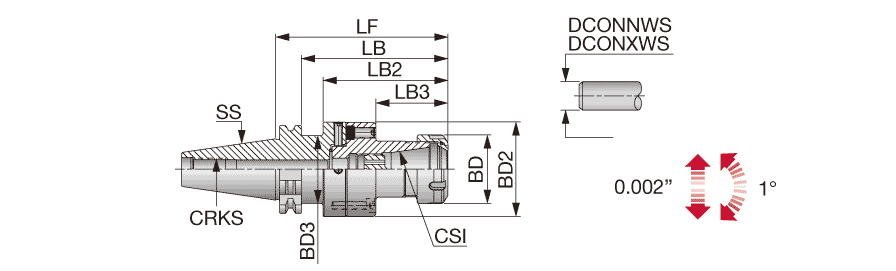

| Shank Size (SS) | CAT50 | Application | | Tapered shape interface | |
| Connection Size (CSI) | ER32 | Tool Type | Caterpillar |
| Body Diameter (BD) | 1.969″ | Connection Diameter Minimum Workpiece Side (DCONNWS) | 0.008″ |
| Body Length (LB) | 4.152″ | Connection Diameter Maximum Workpiece Side (DCONXWS) | 0.789″ |
| Body Length_2 (LB_2) | 2.067″ | Measurement Type | Inch |
| Shank Length (LS) | 4″ | Body Material | Steel |
| Functional Length (LF) | 4.902″ | Unit | I |
Product Features
| Family Description | DIN 6499 ER center alignment collet chuck holder with a Caterpillar tapered shank. | FamilyName | ADJ CAT-ER collet chuck |
| Remarks | Applicable for 10 MPa pressure coolant. | BrandName | Tungaloy |
| COO | ISRAEL |
Shipping Info
Weight per item
0.0000
Name
Collet Chucks
FamilyName
ADJ CAT-ER collet chuck
BrandName
Tungaloy
