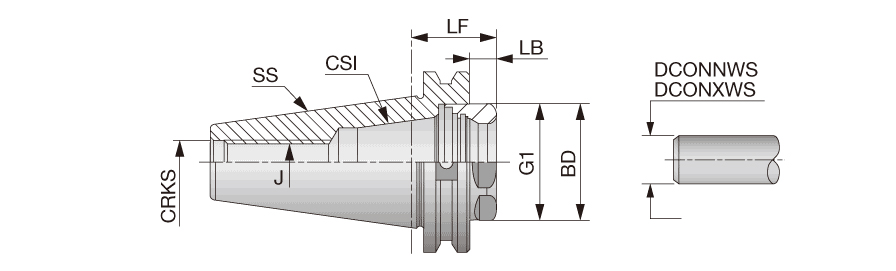

| Shank Size (SS) | SK50 | Tool Type | DIN 69871 |
| Connection Size (CSI) | ER32 | Connection Diameter Minimum Workpiece Side (DCONNWS) | 2 mm |
| Body Diameter (BD) | 40 mm | Connection Diameter Maximum Workpiece Side (DCONXWS) | 20 mm |
| Body Length (LB) | 9.5 mm | Measurement Type | Metric |
| Shank Length (LS) | 101.8 mm | Body Material | Steel |
| Functional Length (LF) | 28.6 mm | Unit | M |
| Application | | Tapered shape interface | |
Product Features

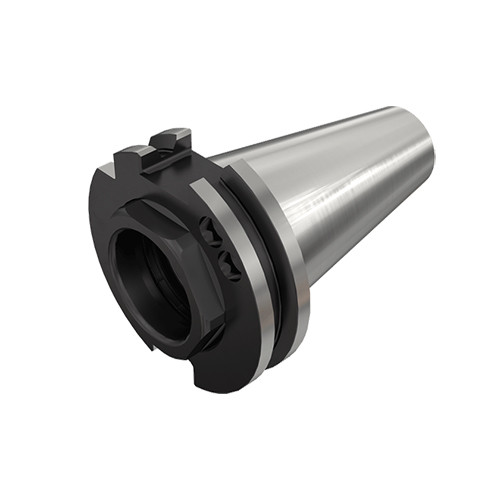

| Family Description | TungShort collet chucks with DIN69871 shank | FamilyName | DIN69871-ER-SHORT (TungShort) |
| Remarks | Add B for coolant through the flange. | BrandName | Tungaloy |
| COO | TURKEY |
Shipping Info
Weight per item
2.5700
Name
Collet Chucks
FamilyName
DIN69871-ER-SHORT (TungShort)
BrandName
Tungaloy
