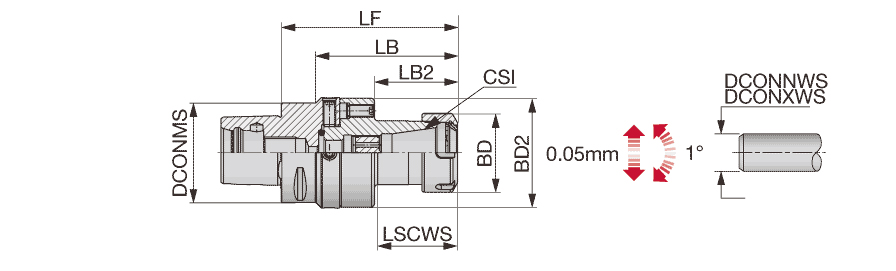

| Shank Size (SS) | C5 | Application | | Face contact interface | |
| Connection Size (CSI) | ER32 | Tool Type | ISO 26623-1 (CAMFIX, CAPTO) |
| Body Diameter (BD) | 70 mm | Connection Diameter Minimum Workpiece Side (DCONNWS) | 2 mm |
| Body Length (LB) | 95 mm | Connection Diameter Maximum Workpiece Side (DCONXWS) | 20 mm |
| Body Length_2 (LB_2) | 52.5 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 50 mm | Body Material | Steel |
| Shank Length (LS) | 30 mm | Unit | M |
| Functional Length (LF) | 115 mm |
Product Features

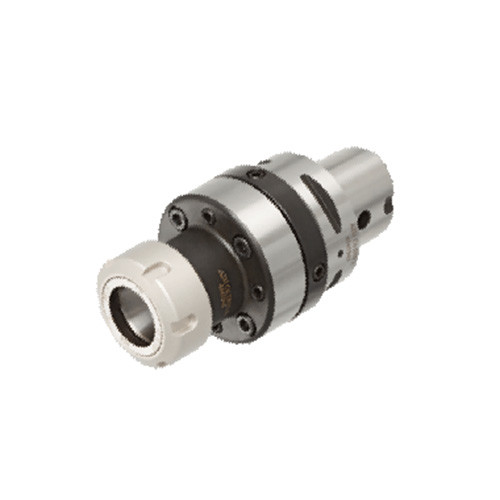

| Family Description | TungCap ER collet chucks with center alignment | FamilyName | ADJ C-ER collet chuck |
| Remarks | Applicable for 7 MPa coolant. Wrench is not included | BrandName | Tungaloy |
| COO | ISRAEL |
Shipping Info
Weight per item
2.0600
Name
Collet Chucks
FamilyName
ADJ C-ER collet chuck
BrandName
Tungaloy
