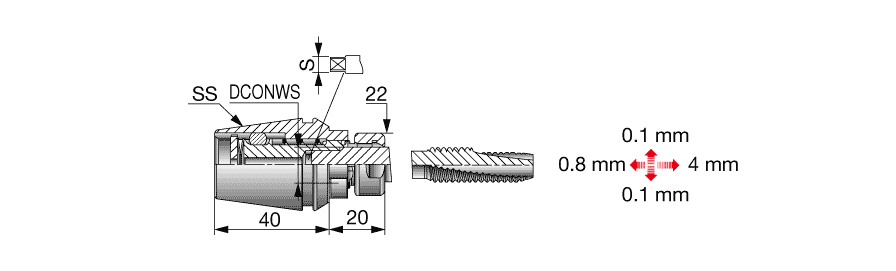

| Shank Size (SS) | ER32 | Tap Max | M12 |
| Connection Diameter Machine Side (DCONMS) | 8.5 mm | Tap Min | M12 |
| Shank Length (LS) | 40 mm | Measurement Type | Metric |
| Functional Length (LF) | 20 mm | Connection Diameter Workpiece Side (DCONWS) | 8.5 mm |
| Application | | Straight shape | | Body Material | Steel |
| Tool Type | Spring Collets | Unit | M |
Product Features

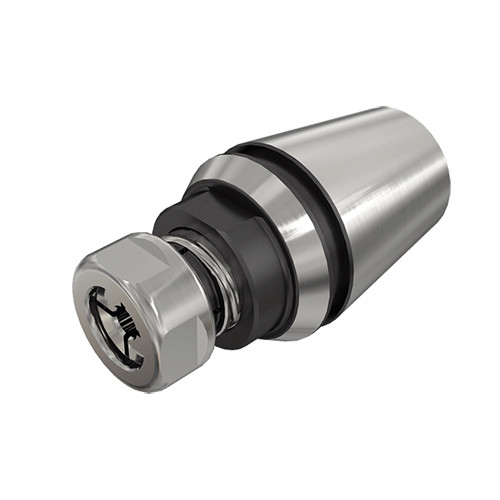

| Family Description | ER collet tapping attachments, tension and compression JIS type used for CNC milling and turret lathe machines. A compact design with a misalignment compensating mechanism. | FamilyName | GTIN ER-JIS(Tapping) |
| Remarks | No coolant should be induced through the tapping collet, as it will cause malfunctioning of the mechanism. | BrandName | Tungaloy |
| COO | ISRAEL |
Shipping Info
Weight per item
0.2340
Name
Collet Chucks
FamilyName
GTIN ER-JIS(Tapping)
BrandName
Tungaloy
Related Documentation
[Operation] @For through- and blind-hole tapping: @(1) Enter feed rate according to thread pitch (or 1-2 % lower). Set spindle to starting point with 0.08 mm clearance. @(2) Start spindle forward with right hand rotation until reaching desired depth. @(3) Stop feed and rotation and reverse to starting point.
