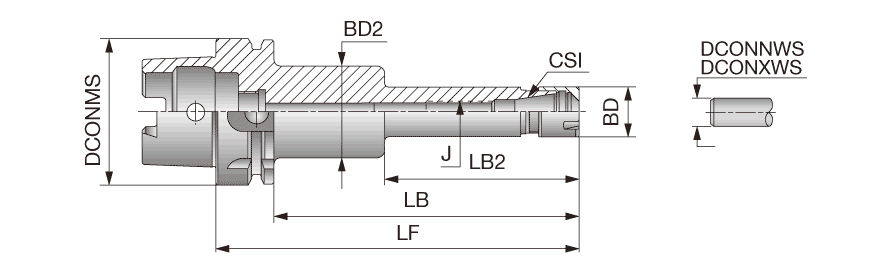

| Shank Size (SS) | HSK A 100 | Functional Length (LF) | 160 mm |
| Connection Size (CSI) | ER16 | Application | | Face contact interface | |
| Body Diameter (BD) | 22 mm | Tool Type | HSK |
| Body Diameter_3 (BD_3) | 40 mm | Connection Diameter Minimum Workpiece Side (DCONNWS) | 0.5 mm |
| Body Length (LB) | 131 mm | Connection Diameter Maximum Workpiece Side (DCONXWS) | 10 mm |
| Body Length_2 (LB_2) | 85 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 100 mm | Body Material | Steel |
| Shank Length (LS) | 50 mm | Unit | M |
Product Features

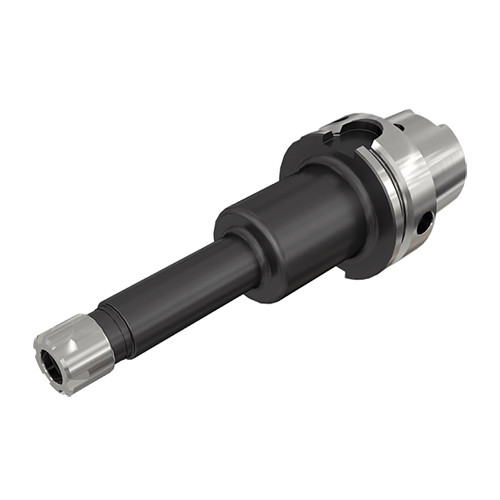

| Family Description | ER Mini-collet chucks with HSK-A shank | FamilyName | HSK A-ER M (mini collet) |
| COO | ITALY | BrandName | Tungaloy |
Shipping Info
Weight per item
0.0000
Name
Collet Chucks
FamilyName
HSK A-ER M (mini collet)
BrandName
Tungaloy
