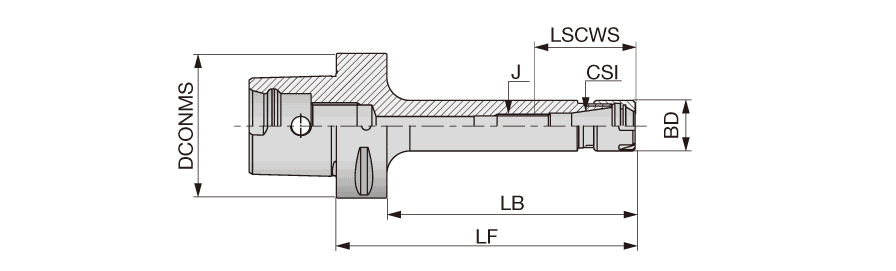

| Shank Size (SS) | C4 | Application | | Face contact interface | |
| Connection Size (CSI) | ER16 | Tool Type | ISO 26623-1 (CAMFIX, CAPTO) |
| Body Diameter (BD) | 22 mm | Connection Diameter Minimum Workpiece Side (DCONNWS) | 0.5 mm |
| Body Length (LB) | 50 mm | Connection Diameter Maximum Workpiece Side (DCONXWS) | 10 mm |
| Connection Diameter Machine Side (DCONMS) | 40 mm | Measurement Type | Metric |
| Shank Length (LS) | 24 mm | Body Material | Steel |
| Functional Length (LF) | 70 mm | Unit | M |
Product Features

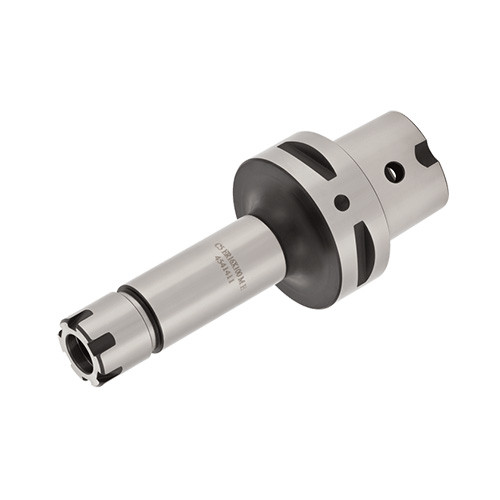

| Family Description | TungCap mini ER collet chucks holders (DIN 6499) | FamilyName | C-ER-M collet chuck |
| Remarks | Applicable for 7 MPa coolant. Wrench is not included | BrandName | Tungaloy |
| COO | ISRAEL |
Shipping Info
Weight per item
0.3860
Name
Collet Chucks
FamilyName
C-ER-M collet chuck
BrandName
Tungaloy
