DIN6987150SEM22X61X300C

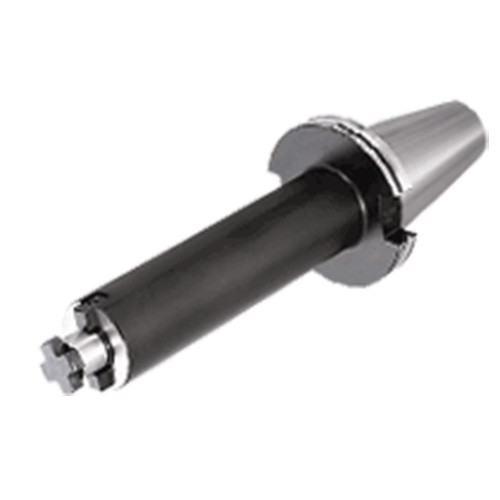

Extra long type Shell mill holder with coolant hole with DIN69871 shank

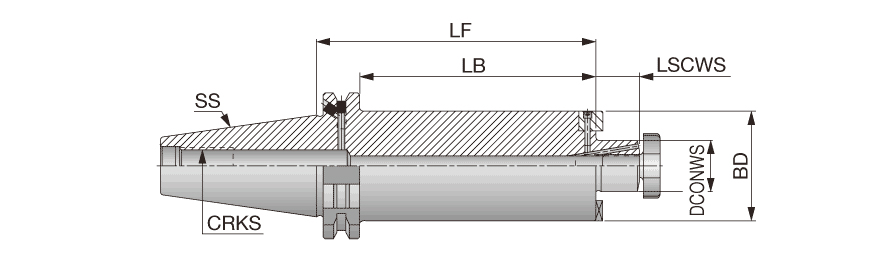

| Connection Diameter Workpiece Side (DCONWS) | 22 mm | Application | | Tapered shape interface | |
| Shank Size (SS) | SK50 | Tool Type | DIN 69871 |
| Body Length (LB) | 281 mm | Measurement Type | Metric |
| Body Diameter (BD) | 61 mm | Body Material | Steel |
| Overall Length (OAL) | 300 mm | Unit | M |
| Connection Retention Knob Thread Size (CRKS) | M24 |
Product Features
| Family Description | Extra long type Shell mill holder with coolant hole with DIN69871 shank | FamilyName | DIN69871-SEM (extra long) |
| Remarks | If the "B type" option is required, the plug screw must the removed from the flange cooling hole. (use a 2 mm hex key.) | BrandName | Tungaloy |
| COO | ITALY |
Shipping Info
Weight per item
9.0600
Name
Shell Mill Holders
FamilyName
DIN69871-SEM (extra long)
BrandName
Tungaloy
