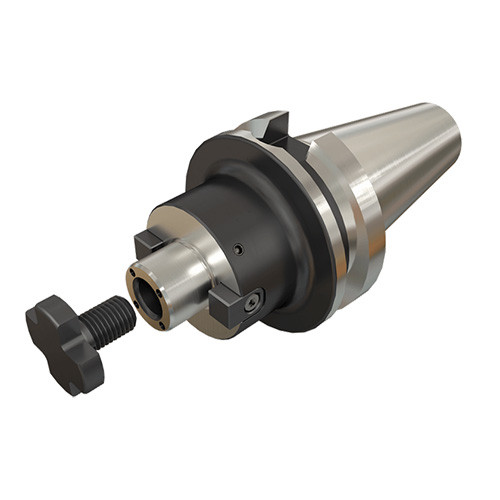

BT50FCSEM22X120C
Shell mill holder with coolant holes and BT MAS-403 face contact AD tapered shank.

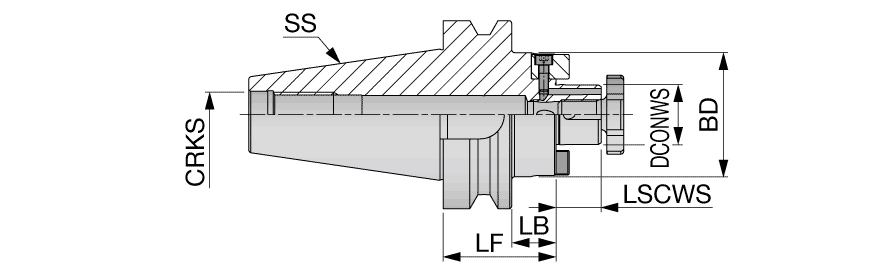

| Connection Diameter Workpiece Side (DCONWS) | 22 mm | Application | | Tapered shape interface | |
| Shank Size (SS) | BT50-FC | Tool Type | BT |
| Body Length (LB) | 83.5 mm | Measurement Type | Metric |
| Body Diameter (BD) | 47 mm | Body Material | Steel |
| Overall Length (OAL) | 120 mm | Unit | M |
| Connection Retention Knob Thread Size (CRKS) | M24 |
Product Features
| Family Description | Shell mill holder with coolant holes and BT MAS-403 face contact AD tapered shank. | FamilyName | BT-FC-SEM-C |
| Remarks | Applicable for 10 MPa coolant | BrandName | Tungaloy |
| COO | ITALY |
Shipping Info
Weight per item
0.0000
Name
Shell Mill Holders
FamilyName
BT-FC-SEM-C
BrandName
Tungaloy
