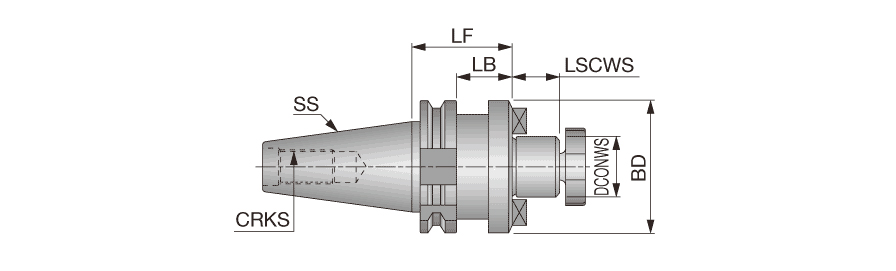

| Connection Diameter Workpiece Side (DCONWS) | 16 mm | Application | | Tapered shape interface | |
| Shank Size (SS) | SK30 | Tool Type | DIN 69871 |
| Body Length (LB) | 15.9 mm | Measurement Type | Metric |
| Body Diameter (BD) | 38 mm | Body Material | Steel |
| Overall Length (OAL) | 35 mm | Unit | M |
| Connection Retention Knob Thread Size (CRKS) | M12 |
Product Features

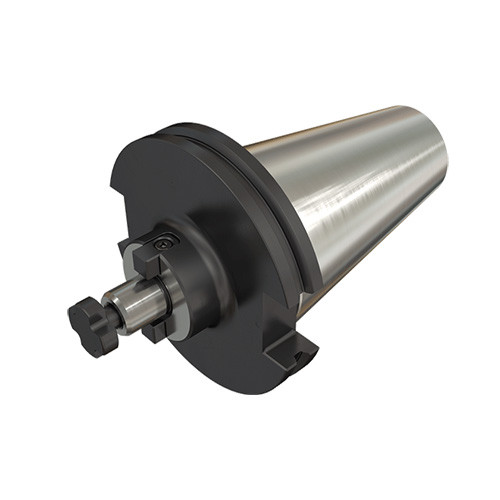

| Family Description | Shell mill holder with DIN69871 shank | FamilyName | DIN69871-SEM (for Shell mill) |
| COO | GERMANY | BrandName | Tungaloy |
Shipping Info
Weight per item
0.5990
Name
Shell Mill Holders
FamilyName
DIN69871-SEM (for Shell mill)
BrandName
Tungaloy
