BT50HYDRO12X110

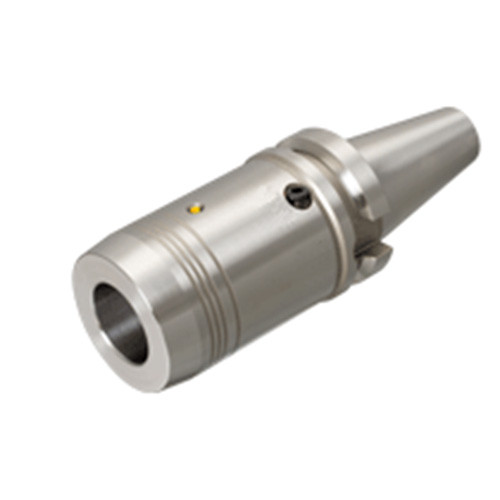

TungHydro hydaulic endmill chuck holders with BT shank

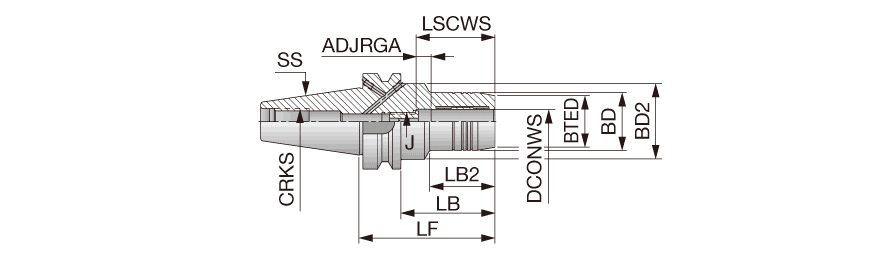

| Body Length (LB) | 72 mm | Shank Size (SS) | 50. |
| Body Length_2 (LB_2) | 42 mm | Application | | Tapered shape interface | |
| Thread Designation Inside (THID) | M10x1 | Tool Type | BT |
| Body Diameter (BD) | 32 mm | Measurement Type | Metric |
| Body Diameter_2 (BD_2) | 80 mm | Body Taper End Diameter (BTED) | 29 |
| Overall Length (OAL) | 110 mm | Body Material | Steel |
| Clamping Length Workpiece Side (LSCWS) | 47 mm | Unit | M |
| Shank Type | Round |
Product Features
| Family Description | TungHydro hydaulic endmill chuck holders with BT shank | FamilyName | BT-HYDRO (TungHydro) |
| Remarks | Clamping wrench (wrench HYDRO HEX 4) should be ordered separately. Note: Available are reduction sleeves for 12, 20, 25 and 32 mm bore diameters. Chucking forces will significantly reduce if reduction sleeves are used (ordered separately) | BrandName | Tungaloy |
| COO | GERMANY |
Shipping Info
Weight per item
4.8400
Name
Hydraulic Holders
FamilyName
BT-HYDRO (TungHydro)
BrandName
Tungaloy
