HSKA100HYDRO32X120
TungHydro hydaulic endmill chuck holders with HSK-A shank

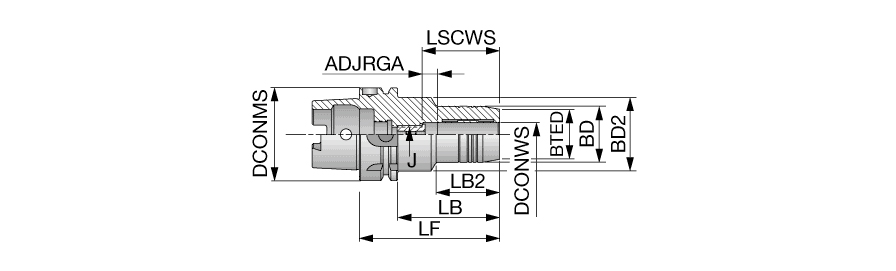

| Connection Diameter Machine Side (DCONMS) | 100 mm | Shank Type | Round |
| Body Length (LB) | 91 mm | Shank Size (SS) | 100. |
| Body Length_2 (LB_2) | 59 mm | Application | | Face contact interface | |
| Thread Designation Inside (THID) | M16x1 | Tool Type | HSK |
| Body Diameter (BD) | 60 mm | Measurement Type | Metric |
| Body Diameter_2 (BD_2) | 63 mm | Body Taper End Diameter (BTED) | 56 |
| Overall Length (OAL) | 120 mm | Body Material | Steel |
| Clamping Length Workpiece Side (LSCWS) | 62 mm | Unit | M |
Product Features
| Family Description | TungHydro hydaulic endmill chuck holders with HSK-A shank | FamilyName | HSK A-HYDRO (TungHydro) |
| Remarks | Clamping wrench (wrench HYDRO HEX 4) should be ordered separately. Note: Available are reduction sleeves for 12, 20, 25 and 32 mm bore diameters. Chucking forces will significantly reduce if reduction sleeves are used (ordereed separately). | BrandName | Tungaloy |
| COO | GERMANY |
Shipping Info
Weight per item
3.7600
Name
Hydraulic Holders
FamilyName
HSK A-HYDRO (TungHydro)
BrandName
Tungaloy
