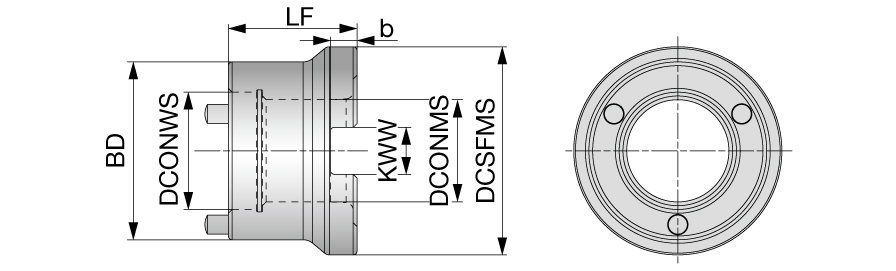

| Connection Diameter Machine Side (DCONMS) | 27 mm | Measurement Type | Metric |
| Body Diameter (BD) | 47 mm | Body Material | Steel |
| Overall Length (OAL) | 34 mm | Unit | M |
| Application | | Slot Milling | |
Product Features

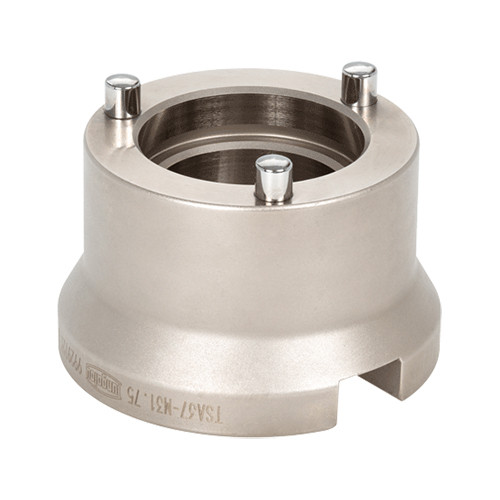

| Family Description | Adapter for TSV/TSW slot mill head | FamilyName | TSA |
| Remarks | For how to assemble the cutter body to the adapter, click on "More Info". *Note : Dedicated wrench is sold separately. If coolant isn't supplied from the end of the arbor inlay,the center bolt corresponding to the adaptor is essential for coolant supplying. | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
0.0000
Name
Milling Chucks
FamilyName
TSA
BrandName
Tungaloy
Related Documentation

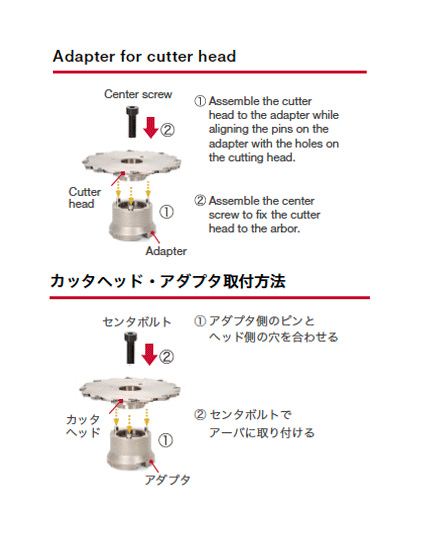

[Adapter for cutter head] @(1) Assemble the cutter head to the adapter while aligning the pins on the adapter with the holes on the cutting head. @(2) Assemble the center screw to fix the cutter head to the arbor.
