VSTD08L070S05-S
TungMeister, Straight shank for VTB type T-slotting heads

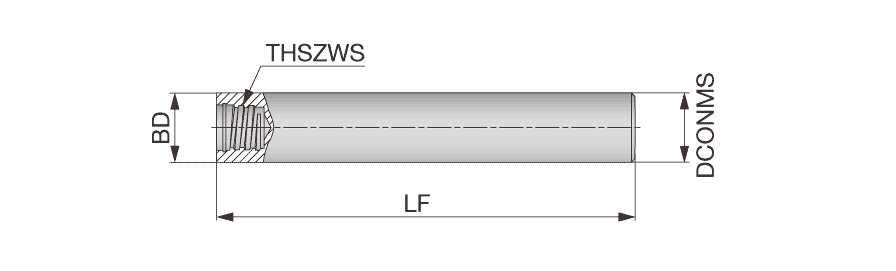

| Application | | Straight shape | | Shank Type | Round |
| Connection Thread Nominal Size Workpiece Side (THSZWS) | S05 | Body Diameter (BD) | 8 mm |
| Connection Diameter Machine Side (DCONMS) | 8 mm | Measurement Type | Metric |
| Overall Length (OAL) | 70 mm | Body Material | Steel |
| Tool Type | Cylindrical Shanks | Unit | M |
Product Features
| Family Description | TungMeister, Straight shank for VTB type T-slotting heads | FamilyName | VSTD type |
| Remarks | For VSTD type shank, just VTB T slotting head is recommended. If other heads are used on the VSTD shank, the depth of cut must be smaller than the APMX in each head. The VSTD type shank does not have external clearance, so the shank may interfere with the work piece. | BrandName | Tungaloy |
| COO | ISRAEL |
Shipping Info
Weight per item
0.0360
Name
Solid End Mill Shanks
FamilyName
VSTD type
BrandName
Tungaloy
