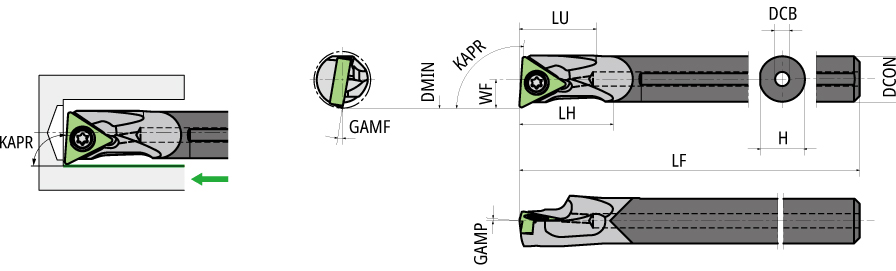

| Shank Height (H) | 7.7 mm | Rake Angle Axial (GAMP) | 5.0 deg |
| Functional Length (LF) | 125 mm | Rake Angle Radial (GAMF) | 10.0 deg |
| Head Length (LH) | 16.5 mm | Usable Length (LU) | 14.5 mm |
| Functional Width (WF) | 5 mm | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 10 mm | Measurement Type | Metric |
| Application | | Boring | | Unit | M |
Product Features
| COO | Japan | BrandName | NTK Cutting Tools |
| FamilyName | C-STUP-OH Mogul Bar |
Shipping Info
Weight per item
0.0493
Name
General Indexable Turning Tools
FamilyName
C-STUP-OH Mogul Bar
BrandName
NTK Cutting Tools
