GTMH32200RGX TM4

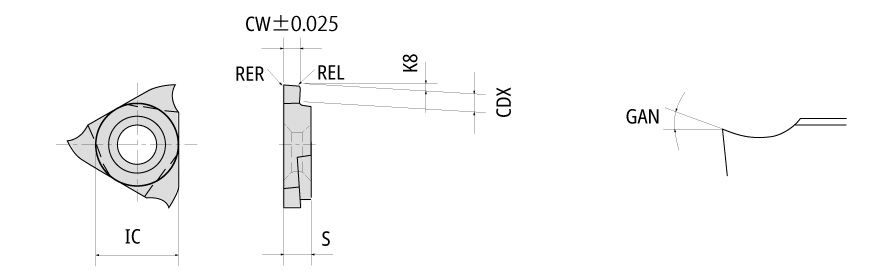

| Cutting Width (CW) | 2 mm | Cutting Edge Material | Carbide |
| Cutting Depth Maximum (CDX) | 3 mm | Application | | Inserts for miniature | |
| Insert Thickness (S) | 3.18 mm | Applicable Material | | Steel | Stainless Steel | |
| Inscribed Circle Diameter (IC) | 9.525 mm | Measurement Type | Metric |
| Insert Rake Angle (GAN) | 17 Degrees | Body Material | Carbide |
| Coating | TiCN | Unit | M |
| Grade | TM4 |
Product Features
| COO | Japan | BrandName | NTK Cutting Tools |
| FamilyName | GTMH32-GX type insert |
Shipping Info
Weight per item
0.0041
Name
Groove/Turn Indexable Inserts
FamilyName
GTMH32-GX type insert
BrandName
NTK Cutting Tools
