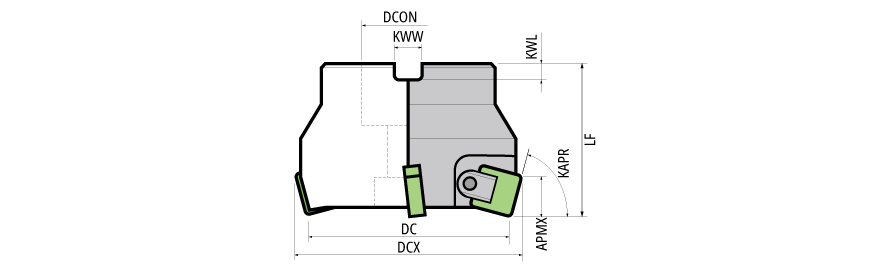

| Cutting Diameter (DC/DCX) | 100 mm | Body Material | Steel |
| Cutting Diameter (DC) | 100 mm | Application | | For Cast Iron material | |
| Cutting Diameter Maximum (DCX) | 107 mm | Measurement Type | Metric |
| Cutting Item Count (CICT) | 10 mm | Functional Length (LF) | 50 mm |
| Depth of Cut Maximum (APMX) | -6 mm | Tool Cutting Edge Angle (KAPR) | 75 Degrees |
| Connection Diameter Machine Side (DCONMS) | 31.75 mm | Unit | M |
Product Features
| COO | Japan | BrandName | NTK |
| FamilyName | JFDX-75 Arbor type Cutter |
Shipping Info
Weight per item
1.3900
Name
Indexable Face Mills
FamilyName
JFDX-75 Arbor type Cutter
BrandName
NTK
