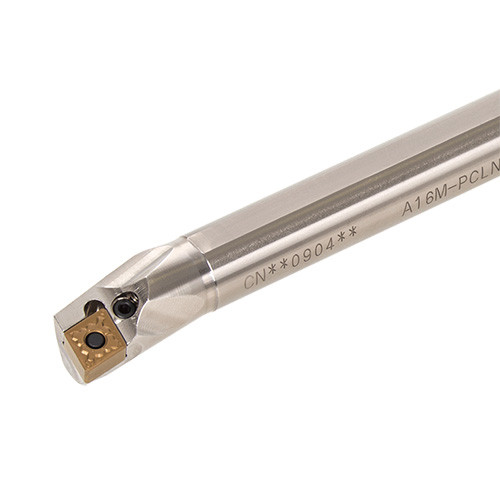

A16M-PCLNR0904-D200
Lever lock boring bar, for negative 80 deg rhombic inserts CN**0904...

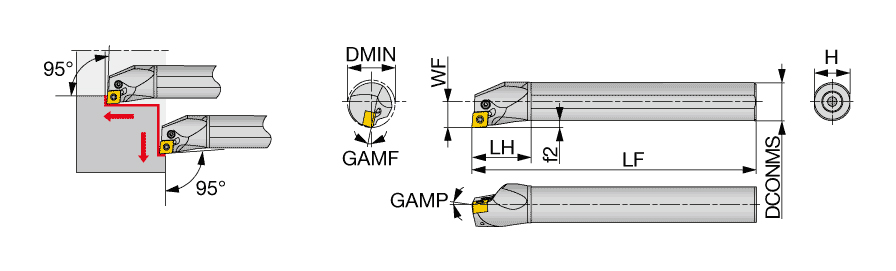

| Connection Diameter Machine Side (DCONMS) | 16 mm | Application | | For 80deg Rhombic insert | |
| Functional Length (LF) | 150 mm | Rake Angle Axial (GAMP) | -6 Degrees |
| Head Length (LH) | 32 mm | Rake Angle Radial (GAMF) | -16 Degrees |
| Shank Height (H) | 15 mm | Body Material | Steel |
| Functional Width (WF) | 11 mm | Measurement Type | Metric |
| Master Insert Identification (MIID) | CNMG090408E | Unit | M |
| Minimum Bore Diameter (DMIN) | 20 mm |
Product Features
| Family Description | Lever lock boring bar, for negative 80 deg rhombic inserts CN**0904... | FamilyName | A-PCLNR/L-Eco |
| Remarks | Torque:Recommended torque (Nm) for clamping. | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
0.2250
Name
Indexable Internal Turning Tools
FamilyName
A-PCLNR/L-Eco
BrandName
Tungaloy
