254.010.006.075

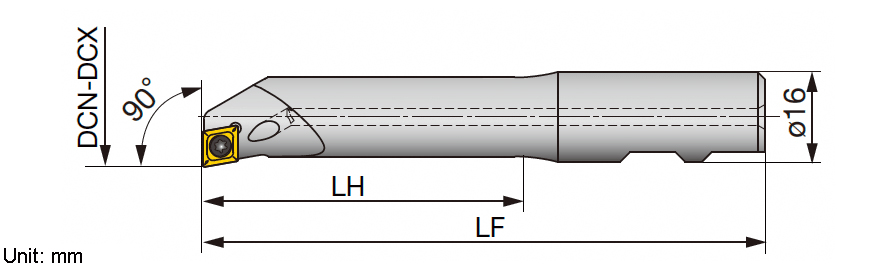

| Connection Diameter Machine Side (DCONMS) | 16 mm | Application | | SwissBore tools | |
| Functional Length (LF) | 75 mm | Body Material | Steel |
| Head Length (LH) | 30 mm | Measurement Type | Metric |
| Master Insert Identification (MIID) | CCMT060208 | Unit | M |
Product Features
| Family Description | Boring bars | FamilyName | SwissBore254-TUN6749466 -M |
| Remarks | DCN and DCX vary depending on the assembly of boring head, boring bar and insert holder. For DCN and DCX, click on "More Info". | BrandName | Tungaloy |
| COO | SWITZERLAND |
Shipping Info
Weight per item
0.183
Name
Indexable Internal Turning Tools
FamilyName
SwissBore254-TUN6749466 -M
BrandName
Tungaloy
Related Documentation

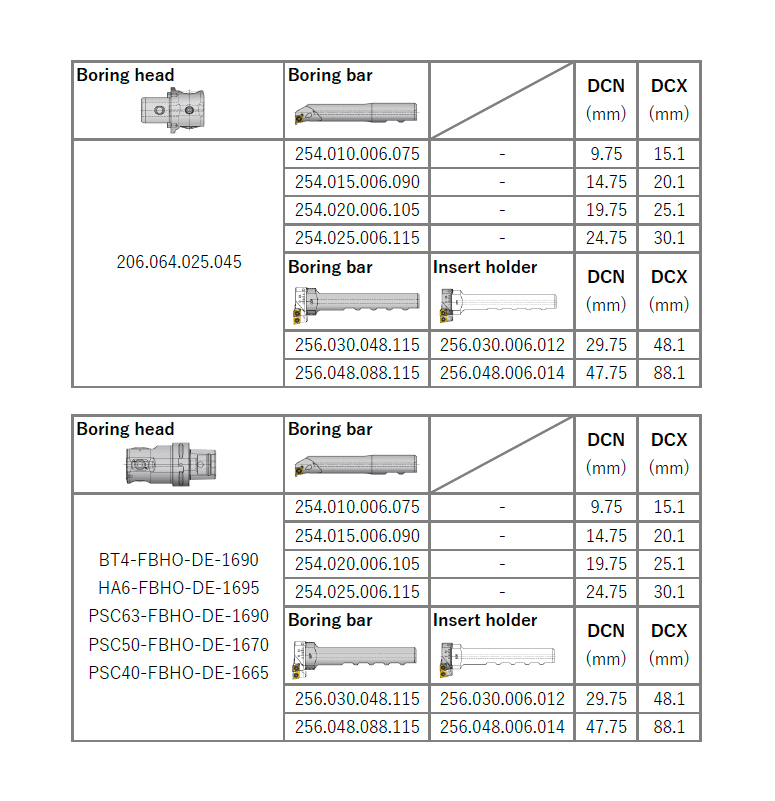

DCN and DCX vary depending on the assembly of boring head, boring bar and insert holder.
