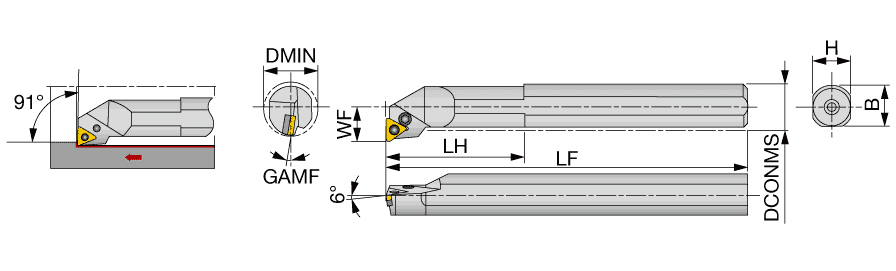

| Connection Diameter Machine Side (DCONMS) | 40 mm | Application | | For Triangular insert | |
| Functional Length (LF) | 300 mm | Rake Angle Axial (GAMP) | -6 Degrees |
| Head Length (LH) | 55 mm | Rake Angle Radial (GAMF) | -10 Degrees |
| Shank Height (H) | 37 mm | Tool Type | Internal Indexble -Turn Tool |
| Shank Width (B) | 37.5 mm | Body Material | Steel |
| Functional Width (WF) | 27 mm | Measurement Type | Metric |
| Master Insert Identification (MIID) | TNMG160408 | Unit | M |
| Minimum Bore Diameter (DMIN) | 50 mm |
Product Features

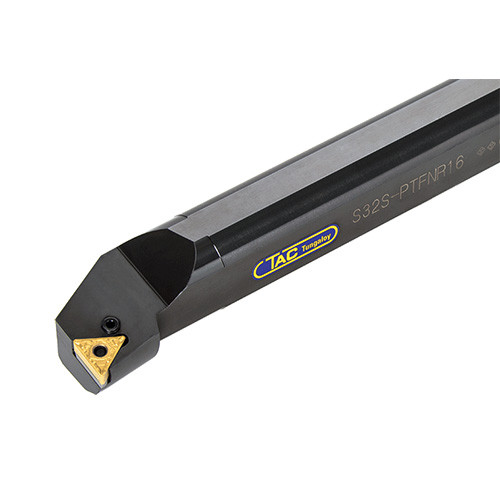

| Family Description | Lever lock boring bar, for negative triangle insert. | FamilyName | S-PTFNR/L |
| Remarks | When using a right or left hand insert, the right hand insert (R) is used for the left hand toolholders (PTFNL** type), and the left hand insert (L) is used for the right hand toolholders (PTFNR** type). Torque:Recommended torque (Nm) for clamping. | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
2.7800
Name
Indexable Internal Turning Tools
FamilyName
S-PTFNR/L
BrandName
Tungaloy
