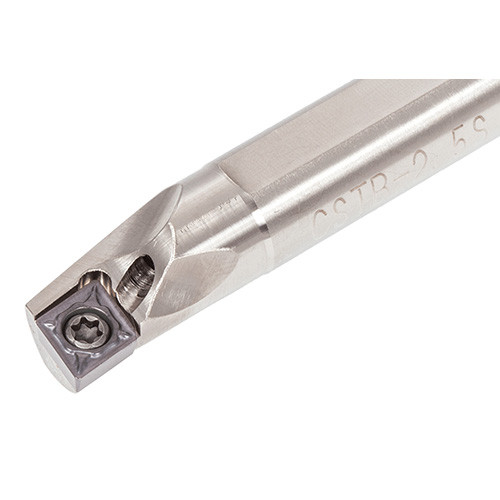

E08K-SCLCR06-D100
Screw-on boring bar, for posi 80 deg rhombic insert with 7 deg clearance

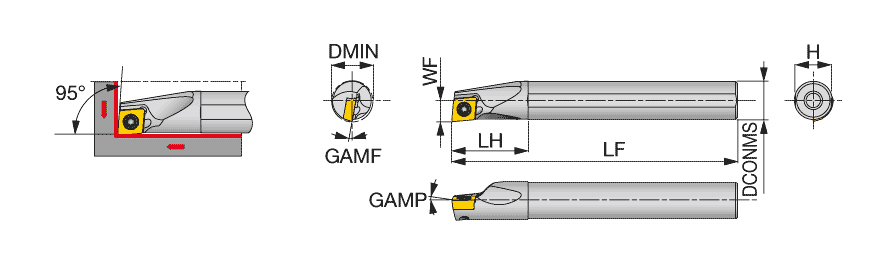

| Connection Diameter Machine Side (DCONMS) | 8 mm | Application | | For 80deg Rhombic insert | For Miniature machining | |
| Functional Length (LF) | 125 mm | Rake Angle Axial (GAMP) | 0 Degrees |
| Head Length (LH) | 22 mm | Rake Angle Radial (GAMF) | -13 Degrees |
| Shank Height (H) | 7.5 mm | Tool Type | Internal Indexble -Turn Tool |
| Functional Width (WF) | 5.5 mm | Body Material | Carbide |
| Master Insert Identification (MIID) | CCMT060204 | Measurement Type | Metric |
| Minimum Bore Diameter (DMIN) | 10 mm | Unit | M |
Product Features
| Family Description | Screw-on boring bar, for posi 80 deg rhombic insert with 7 deg clearance | FamilyName | A/E-SCLCR/L |
| Remarks | When using a right or left hand insert, the right hand insert (R) is used for the left hand toolholders (SCLCL** type), and the left hand insert (L) is used for the right hand toolholders (SCLCR** type). Torque:Recommended torque (Nm) for clamping. | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
0.1000
Name
Indexable Internal Turning Tools
FamilyName
A/E-SCLCR/L
BrandName
Tungaloy
