TBTR04045005-D010 SH725

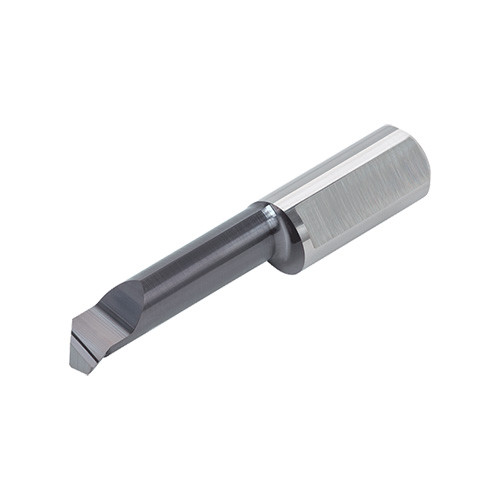

TinyMiniTurn solid boring bar for boring, profiling, and chamfering.

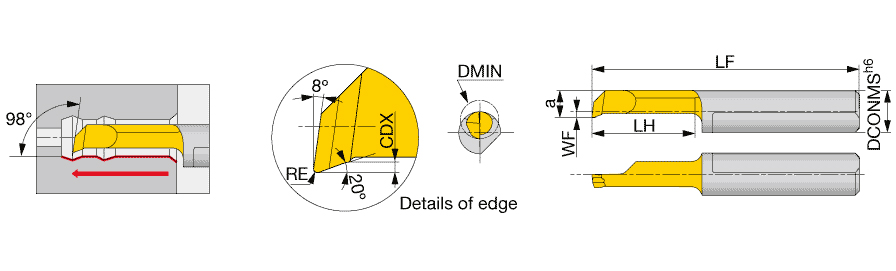

| Connection Diameter Machine Side (DCONMS) | 4 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | |
| Minimum Bore Diameter (DMIN) | 1 mm | Front End Width (a) | 0.9 mm |
| Functional Length (LF) | 21 mm | Functional Width (WF) | -1.1 mm |
| Head Length (LH) | 4.5 mm | Body Material | Carbide |
| Cutting Direction (HAND) | Right Hand | Cutting Edge Material | Carbide |
| Coating | TiAlN | Measurement Type | Metric |
| Grade | SH725 | Unit | M |
| Application | | For Miniature machining | |
Product Features
| Family Description | TinyMiniTurn solid boring bar for boring, profiling, and chamfering. | FamilyName | TBTR/L |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
0.0000
Name
Solid Boring Bars
FamilyName
TBTR/L
BrandName
Tungaloy
