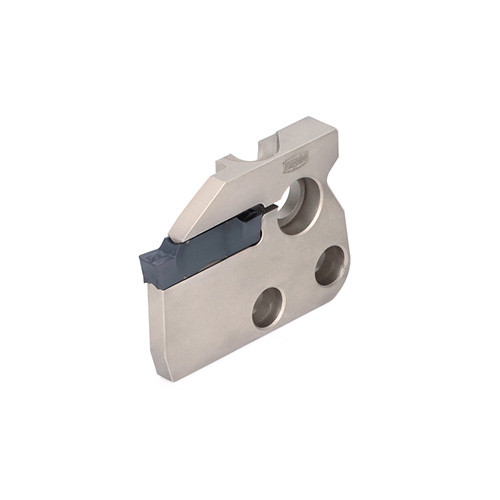

CAER-5T20-MD
Modular-type external grooving, turning and parting adapter

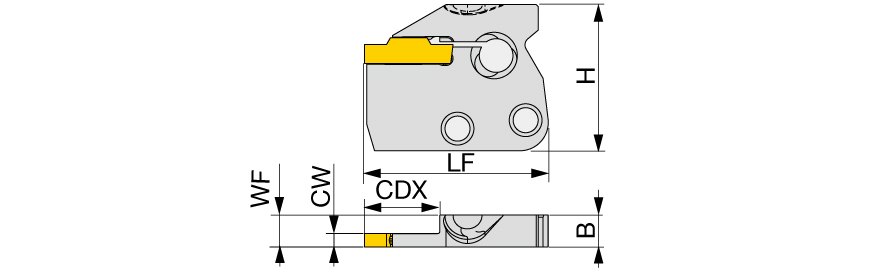

| Cutting Width Minimum (CWN) | 4.5 mm | Cutting Direction (HAND) | Right Hand |
| Cutting Width Maximum (CWX) | 5.49 mm | Application | | External grooving | |
| Shank Height (H) | 33 mm | Body Material | Steel |
| Shank Width (B) | 7.2 mm | Tool Type | Turn-Groove Tools |
| Functional Width (WF) | 7.8 mm | Measurement Type | Metric |
| Functional Length (LF) | 46.3 mm | Unit | M |
Product Features
| Family Description | Modular-type external grooving, turning and parting adapter | FamilyName | CAER/L-MD |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
0.0000
Name
Groove/Turn Indexable Holders
FamilyName
CAER/L-MD
BrandName
Tungaloy
Related Documentation
Please use single-sided inserts (e.g. SGM, SGS) in the case of grooving depth is deeper than insert length - 1.5 mm.
