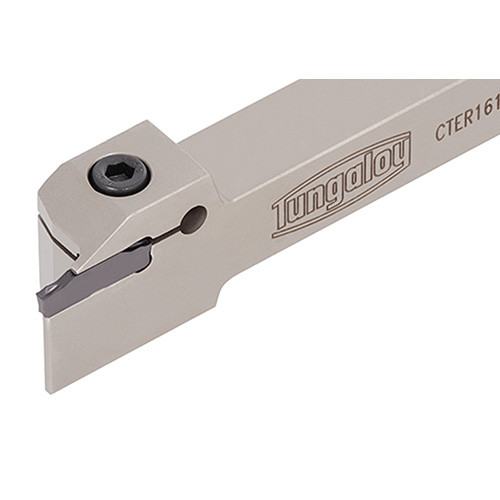

CTEL2525-6T12
External toolholders for grooving, parting & turning

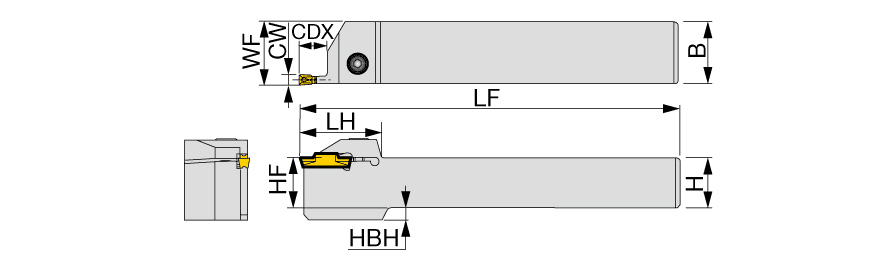

| Cutting Width Minimum (CWN) | 5.5 mm | Cutting Direction (HAND) | Left Hand |
| Cutting Width Maximum (CWX) | 6.49 mm | Application | | External grooving | |
| Shank Height (H) | 25 mm | Body Material | Steel |
| Shank Width (B) | 25 mm | Tool Type | Turn-Groove Tools |
| Functional Width (WF) | 25.6 mm | Measurement Type | Metric |
| Functional Length (LF) | 150 mm | Unit | M |
| Head Length (LH) | 37 mm |
Product Features
| Family Description | External toolholders for grooving, parting & turning | FamilyName | CTER/L |
| Remarks | When depth is deeper than (insert length 1.5 mm), 1 corner type is recommended. See applicable inserts table. Torque: Recommended torque (Nm) for clamping | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
0.8030
Name
Groove/Turn Indexable Holders
FamilyName
CTER/L
BrandName
Tungaloy
