S32-CTIR-2T13D520-H
Exchangeable boring head for internal grooving, general purpose type

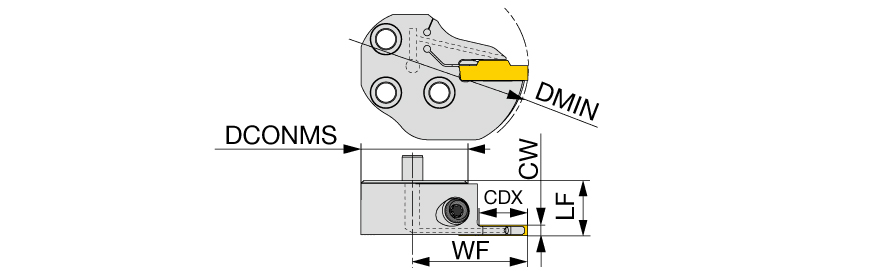

| Cutting Width Minimum (CWN) | 1.5 mm | Cutting Direction (HAND) | Right Hand |
| Cutting Width Maximum (CWX) | 2.49 mm | Application | | Internal grooving | |
| Minimum Bore Diameter (DMIN) | 52 mm | Body Material | Steel |
| Functional Width (WF) | 33.5 mm | Tool Type | Turn-Groove Tools |
| Functional Length (LF) | 16 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Unit | M |
Product Features
| Family Description | Exchangeable boring head for internal grooving, general purpose type | FamilyName | S-CTIR/L-H |
| Remarks | DMIN for a 50 mm shank is equal to the requested head size plus 10 mm. For a 60 mm shank, the DMIN is the requested head size plus 20 mm. | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
0.0000
Name
Groove/Turn Indexable Holders
FamilyName
S-CTIR/L-H
BrandName
Tungaloy
