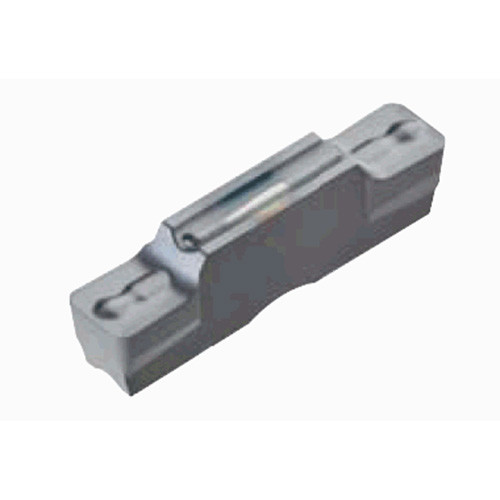

DTE4-040 T515
Precision double-ended inserts for external/face grooving & turning, tolerance of insert width +-0.02mm (only DTE3-,4-,5-,6-*** +-0.05mm)
| Cutting Width (CW) | 4 mm | Applicable Material | | Cast Iron | |
| Corner Radius (RE) | 0.4 mm | Cutting Direction (HAND) | Neutral |
| Cutting Depth Maximum (CDX) | 18.5 mm | Number of Cutting Edges | 2 |
| Coating | TiCN+Al2O3 | Measurement Type | Metric |
| Grade | T515 | Tool Type | Groove-Turn Utility Inserts |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Application | | Inserts | | Unit | M |
Product Features
| Family Description | Precision double-ended inserts for external/face grooving & turning, tolerance of insert width +-0.02mm (only DTE3-,4-,5-,6-*** +-0.05mm) | FamilyName | DTE |
| Remarks | For "Standard cutting conditions", click on "More Info". | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
0.0570
Name
Groove/Turn Indexable Inserts
FamilyName
DTE
BrandName
Tungaloy
