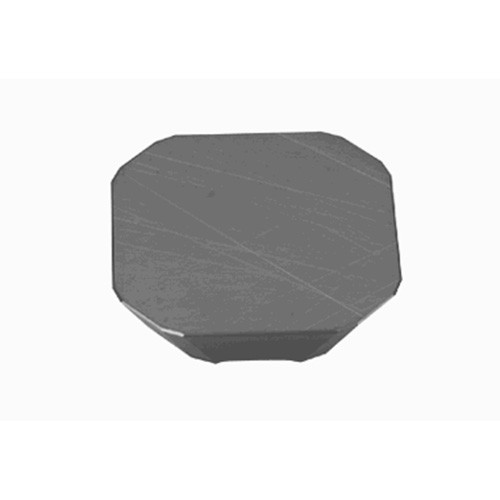

SEEN1203AGTNCR AH140
Flat-top square insert with 20deg relief angle for 45deg corner angle milling cutter

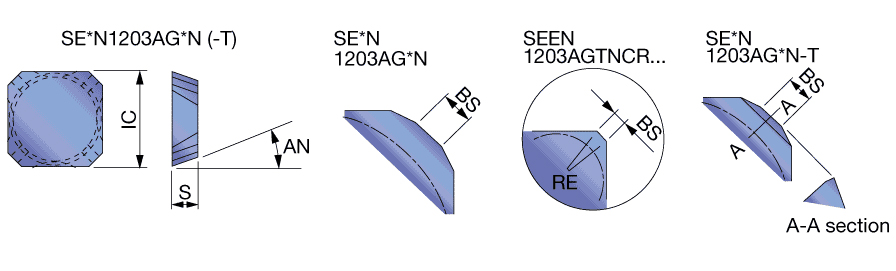

| Applicable Material | | Steel | Stainless Steel | | Coating | TiAlN |
| Application | | Face Milling | | Grade | AH140 |
| Corner Radius (RE) | 1.3 mm | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 4 mm | Tool Type | Single sided Inserts |
| Insert Width (W1) | 12.7 mm | Number of Cutting Edges | 4 |
| Inscribed Circle Diameter (IC) | 12.7 mm | Measurement Type | Metric |
| Insert Thickness (S) | 3.18 mm | Body Material | Carbide |
| Wiper Edge Length (BS) | 1.6 mm | Unit | M |
Product Features
| Family Description | Flat-top square insert with 20deg relief angle for 45deg corner angle milling cutter | FamilyName | SECN/SEEN/SEKN 1203 |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
0.0690
Name
Milling Indexable Inserts
FamilyName
SECN/SEEN/SEKN 1203
BrandName
Tungaloy
