TASN13J160B50.8R08

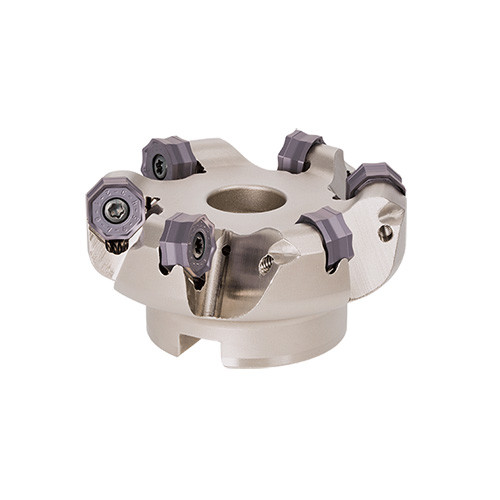

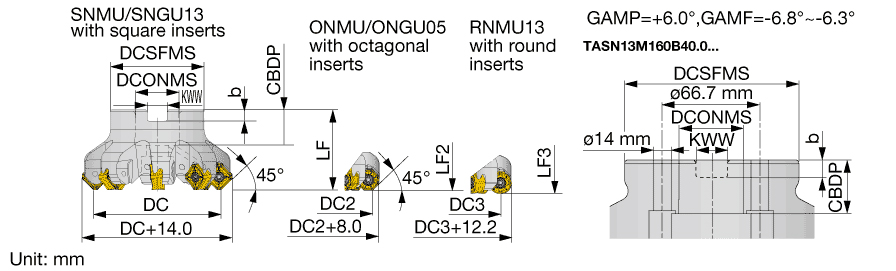

45 deg face milling cutters with double-sided square, octagon or radius inserts; Bore type
| Cutting Diameter (DC/DCX) | 174 mm | Body Material | Steel |
| Cutting Diameter (DC) | 160 mm | Cutting Direction (HAND) | Right Hand |
| Cutting Diameter Maximum (DCX) | 174 mm | Application | | Face Milling | |
| Cutting Item Count (CICT) | 8 | Measurement Type | Metric |
| Depth of Cut Maximum (APMX) | 6 mm | Functional Length (LF) | 63 mm |
| Connection Diameter Machine Side (DCONMS) | 50.8 mm | Tool Type | CUTTER - BORE TYPE |
| Overall Length (OAL) | 63 mm | Unit | M |
| Master Insert Identification (MIID) | SNMU1307ANEN-MJ |
Product Features
| Family Description | 45 deg face milling cutters with double-sided square, octagon or radius inserts; Bore type | FamilyName | TASN13 |
| Remarks | APMX may vary with insert type. | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
5.2400
Name
Indexable Face Mills
FamilyName
TASN13
BrandName
Tungaloy
