ERC16R050M42.0-03LL

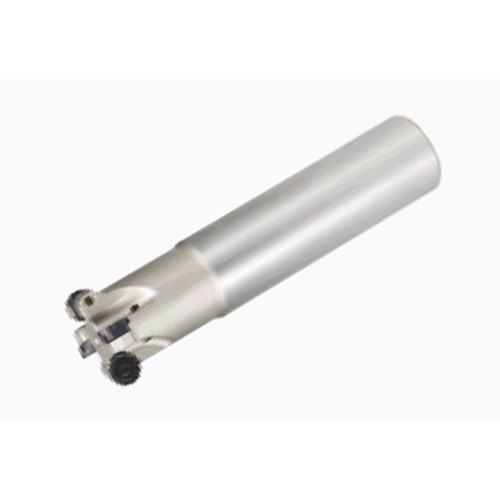

Indexable endmills with button insert of 8mm or 6mm radius

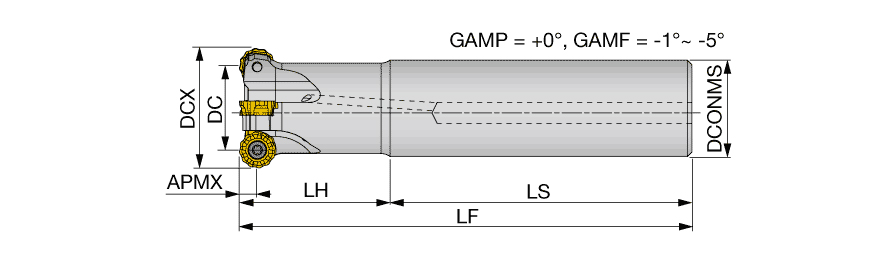

| Cutting Diameter (DC/DCX) | 34 mm | Head Length (LH) | 50 mm |
| Cutting Diameter (DC) | 34 mm | Functional Length (LF) | 300 mm |
| Cutting Item Count (CICT) | 3 | Tool Type | Corner rounding endmills |
| Depth of Cut Maximum (APMX) | 8 mm | Measurement Type | Metric |
| Overall Length (OAL) | 300 mm | Body Material | Steel |
| Shank Type | Round | Shank Length (LS) | 250 mm |
| Application | | Profile Milling | | Cutting Diameter Maximum (DCX) | 50 mm |
| Connection Diameter Machine Side (DCONMS) | 42 mm | Unit | M |
| Master Insert Identification (MIID) | RCMT1606EN-NMJ |
Product Features
| Family Description | Indexable endmills with button insert of 8mm or 6mm radius | FamilyName | ERC12/16 |
| COO | GERMANY | BrandName | Tungaloy |
Shipping Info
Weight per item
3.1030
Name
Indexable End Mills
FamilyName
ERC12/16
BrandName
Tungaloy
