EBRM25T32S200

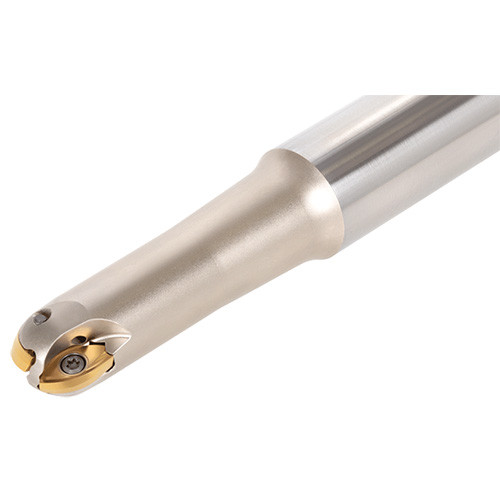

Indexable ball nose endmills for semi-roughing, shank type

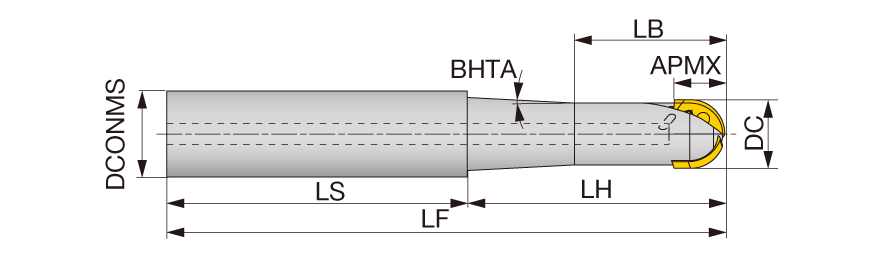

| Cutting Diameter (DC/DCX) | 25 mm | Head Length (LH) | 85 mm |
| Cutting Diameter (DC) | 25 mm | Functional Length (LF) | 200 mm |
| Cutting Item Count (CICT) | 2 | Tool Type | Ball nose endmills |
| Depth of Cut Maximum (APMX) | 17.7 mm | Measurement Type | Metric |
| Overall Length (OAL) | 200 mm | Body Material | Steel |
| Application | | Profile Milling | | Cutting Diameter Maximum (DCX) | 25 mm |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Unit | M |
| Master Insert Identification (MIID) | ZRBM250-MM |
Product Features
| Family Description | Indexable ball nose endmills for semi-roughing, shank type | FamilyName | EBRM |
| COO | SOUTH KOREA | BrandName | Tungaloy |
Shipping Info
Weight per item
0.0000
Name
Indexable End Mills
FamilyName
EBRM
BrandName
Tungaloy
