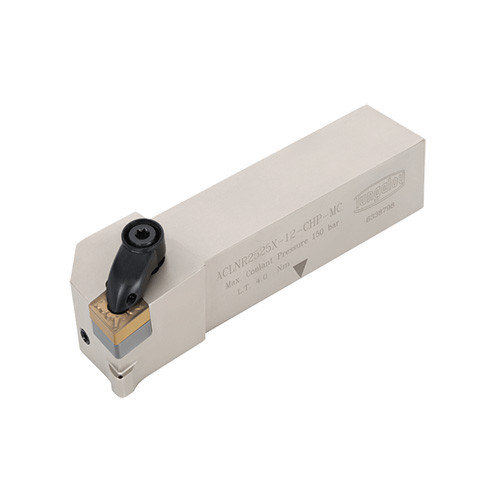

ACLNR2525X-12-CHP-MC
Double-clamp toolholder with 95 deg approach angle, for negative 80 deg rhombic inserts, with high pressure coolant channels. High-pressure coolant capability with tube and direct connection.

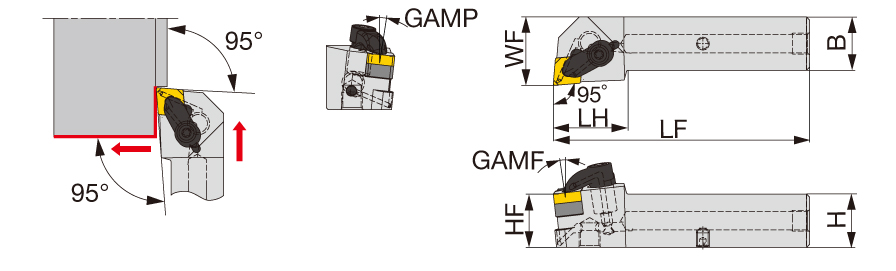

| Shank Height (H) | 25 mm | Application | | For 80deg Rhombic insert | |
| Shank Width (B) | 25 mm | Rake Angle Axial (GAMP) | 6 Degrees |
| Overall Length (OAL) | 120 mm | Rake Angle Radial (GAMF) | 6 Degrees |
| Functional Length (LF) | 120 mm | Body Material | Steel |
| Head Length (LH) | 35 mm | Tool Type | Square Shank Turning Tools |
| Functional Width (WF) | 32 mm | Measurement Type | Metric |
| Cutting Direction (HAND) | Right Hand | Unit | M |
| Master Insert Identification (MIID) | CNMG120408 |
Product Features
| Family Description | Double-clamp toolholder with 95 deg approach angle, for negative 80 deg rhombic inserts, with high pressure coolant channels. High-pressure coolant capability with tube and direct connection. | FamilyName | ACLNR/L-X-CHP-MC |
| Remarks | Torque: Recommended torque (Nm) for clamping. Applicable for 14 MPa pressure coolant. | BrandName | Tungaloy |
| COO | ISRAEL |
Shipping Info
Weight per item
0.0000
Name
General Indexable Turning Tools
FamilyName
ACLNR/L-X-CHP-MC
BrandName
Tungaloy

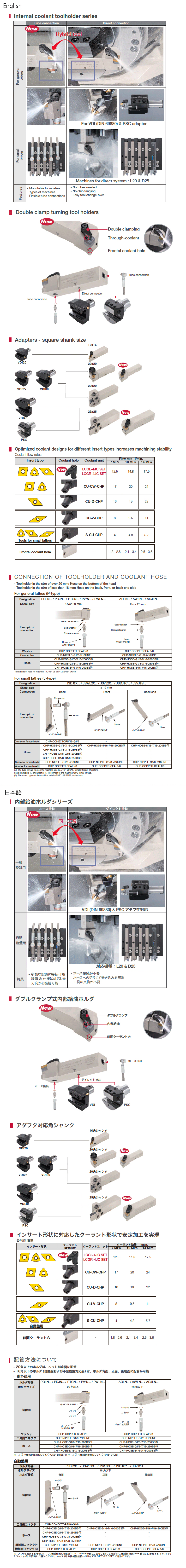

Related Documentation
