PTGNR2020K16-CHP

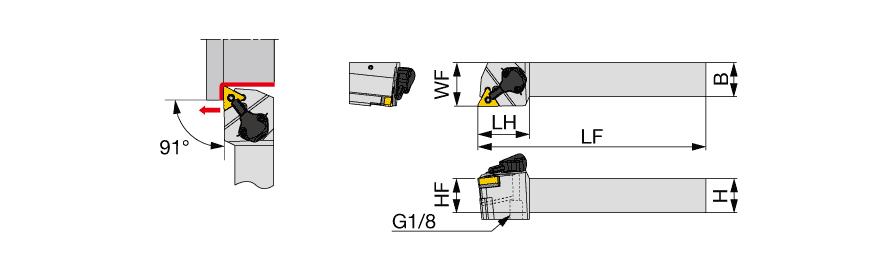

Lever lock type toolholder with 91 deg approach angle, for negative triangle inserts TN**1604..., with channels for high pressure coolant
| Shank Height (H) | 20 mm | Cutting Direction (HAND) | Right Hand |
| Shank Width (B) | 20 mm | Master Insert Identification (MIID) | TNMG160408 |
| Overall Length (OAL) | 125 mm | Application | | For Triangular insert | |
| Functional Length (LF) | 125 mm | Body Material | Steel |
| Head Length (LH) | 38 mm | Measurement Type | Metric |
| Functional Width (WF) | 32 mm | Unit | M |
Product Features
| Family Description | Lever lock type toolholder with 91 deg approach angle, for negative triangle inserts TN**1604..., with channels for high pressure coolant | FamilyName | PTGNR/L-CHP |
| Remarks | Torque:Recommended torque (Nm) for clamping. | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
0.5970
Name
General Indexable Turning Tools
FamilyName
PTGNR/L-CHP
BrandName
Tungaloy
