PTGNL163-CHP

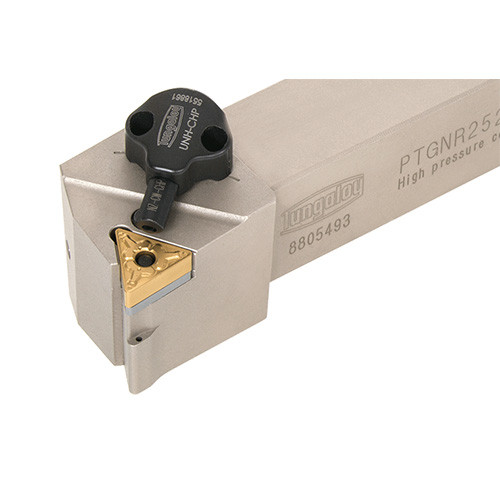

Lever lock type toolholder with 91 deg approach angle, for negative triangle inserts TN**33..., with channels for high pressure coolant

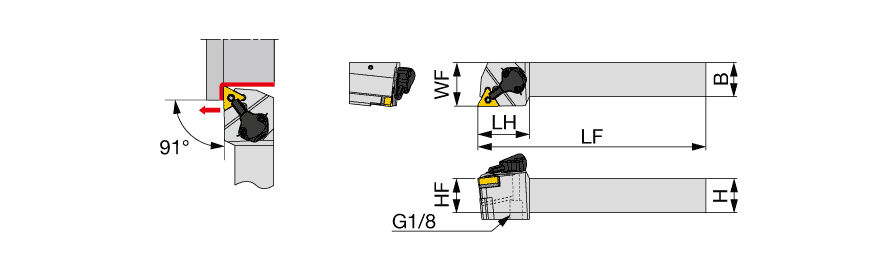

| Shank Height (H) | 1″ | Cutting Direction (HAND) | Left Hand |
| Shank Width (B) | 1″ | Master Insert Identification (MIID) | TNMG332 |
| Overall Length (OAL) | 6″ | Application | | For Triangular insert | |
| Functional Length (LF) | 6″ | Body Material | Steel |
| Head Length (LH) | 1-1/2″ | Measurement Type | Inch |
| Functional Width (WF) | 1-1/4″ | Unit | I |
Product Features
| Family Description | Lever lock type toolholder with 91 deg approach angle, for negative triangle inserts TN**33..., with channels for high pressure coolant | FamilyName | PTGNR/L-CHP |
| Remarks | Torque:Recommended torque (Nm) for clamping. | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
1.9908
Name
General Indexable Turning Tools
FamilyName
PTGNR/L-CHP
BrandName
Tungaloy
