JSTACL1616H11

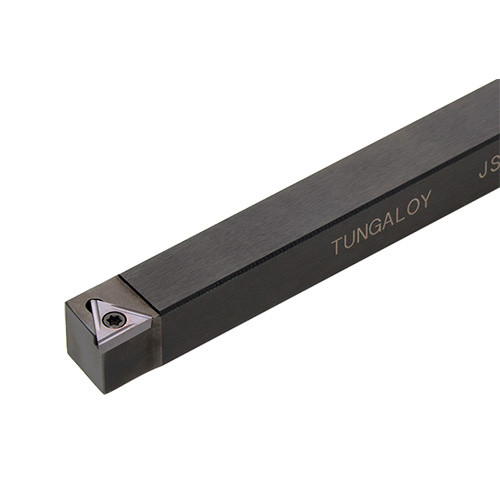

No-offset Screw-on toolholder with 91deg approach angle, for positive triangle inserts

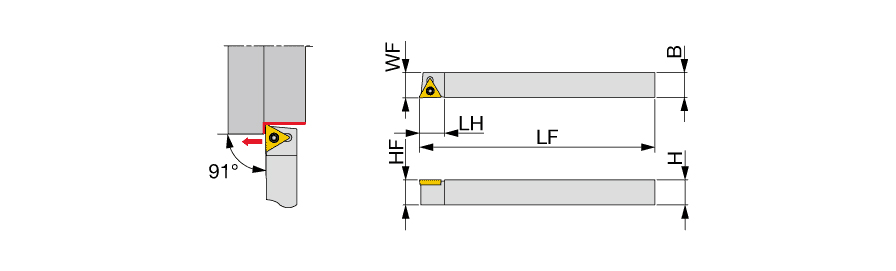

| Shank Height (H) | 16 mm | Master Insert Identification (MIID) | TCGT110204 |
| Shank Width (B) | 16 mm | Application | | For Miniature machining | For Triangular insert | |
| Overall Length (OAL) | 100 mm | Body Material | Steel |
| Functional Length (LF) | 100 mm | Tool Type | Square Shank Turning Tools |
| Head Length (LH) | 12 mm | Measurement Type | Metric |
| Functional Width (WF) | 16 mm | Unit | M |
| Cutting Direction (HAND) | Left Hand |
Product Features
| Family Description | No-offset Screw-on toolholder with 91deg approach angle, for positive triangle inserts | FamilyName | JSTACR/L |
| Remarks | Torque:Recommended torque (Nm) for clamping. | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
0.2090
Name
General Indexable Turning Tools
FamilyName
JSTACR/L
BrandName
Tungaloy
