PTFNR20CA

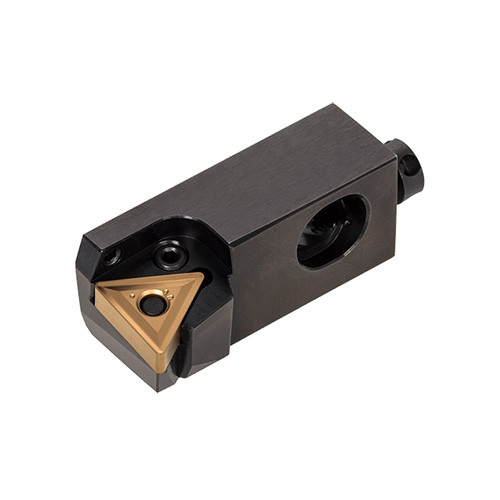

Lever lock cartridge with 90deg approach angle for negative triangule inserts

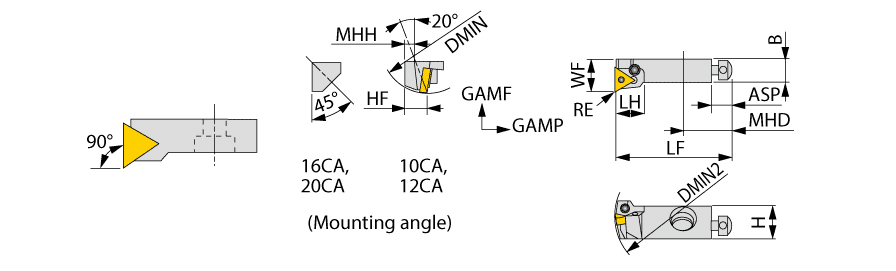

| Shank Height (H) | 20 mm | Master Insert Identification (MIID) | TNMG220408 |
| Shank Width (B) | 19 mm | Application | | Cartridges | |
| Overall Length (OAL) | 70 mm | Rake Angle Axial (GAMP) | -6 Degrees |
| Functional Length (LF) | 70 mm | Rake Angle Radial (GAMF) | -7 Degrees |
| Head Length (LH) | 28 mm | Body Material | Steel |
| Functional Width (WF) | 25 mm | Tool Type | Adapter Turning Tools |
| Minimum Bore Diameter (DMIN) | 70 mm | Measurement Type | Metric |
| Cutting Direction (HAND) | Right Hand | Unit | M |
Product Features
| Family Description | Lever lock cartridge with 90deg approach angle for negative triangule inserts | FamilyName | PTFN-CA |
| Remarks | The left hand insert is used for the right hand cartridge and right hand insert is used for left hand cartridge. | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
0.2290
Name
General Indexable Turning Tools
FamilyName
PTFN-CA
BrandName
Tungaloy
