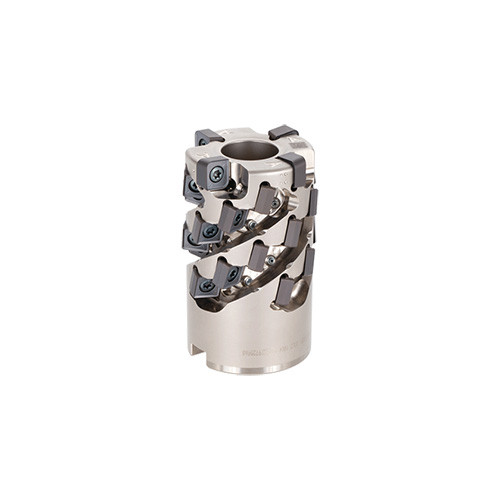

LPSX10M050B22.0L076R04
Extended-flute cutter for rough operations of titanium alloy and cast iron parts

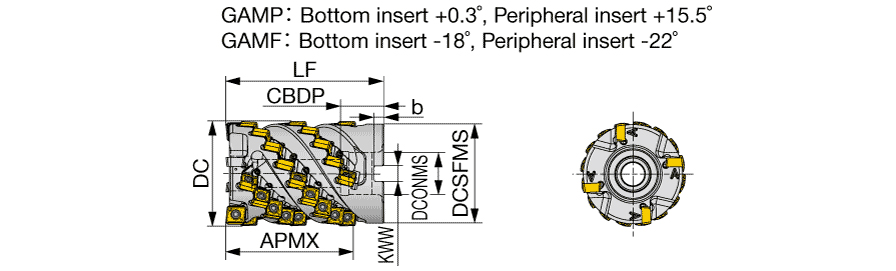

| Application | | Shoulder Milling | | Cutting Direction (HAND) | Right Hand |
| Cutting Item Count (CICT) | 40 | Measurement Type | Metric |
| Depth of Cut Maximum (APMX) | 76.5 mm | Body Material | Steel |
| Overall Length (OAL) | 91 mm | Tool Type | 90 Extended flute shell mill |
| Arbor Style | A | Unit | M |
Product Features
| Family Description | Extended-flute cutter for rough operations of titanium alloy and cast iron parts | FamilyName | LPSX10 |
| Remarks | Note: Coolant needs to be supplied from the end of the arbor inlay. Coolant cannot be supplied from the set bolt. | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
0.0000
Name
Shell Mills
FamilyName
LPSX10
BrandName
Tungaloy
Related Documentation

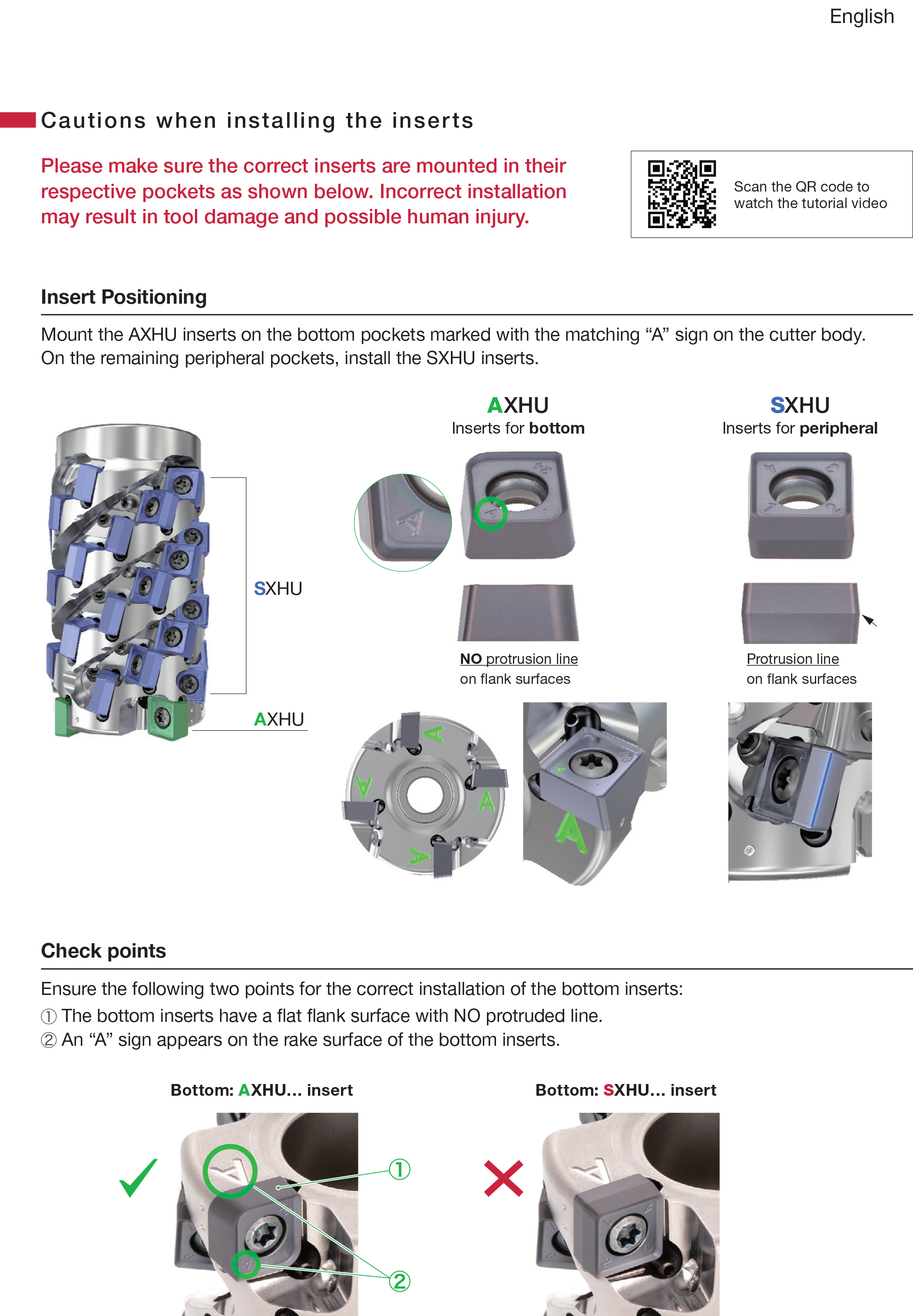

[Insert Positioning] @Mount the AXHU inserts on the bottom pockets marked with the matching "A" sign on the cutter body. @On the remaining peripheral pockets, install the SXHU inserts. @[Check points] @Ensure the following two points for the correct installation of the bottom inserts: @(1) The bottom inserts have a flat flank surface with NO protruded line. @(2) An "A" sign appears on the rake surface of the bottom inserts.
