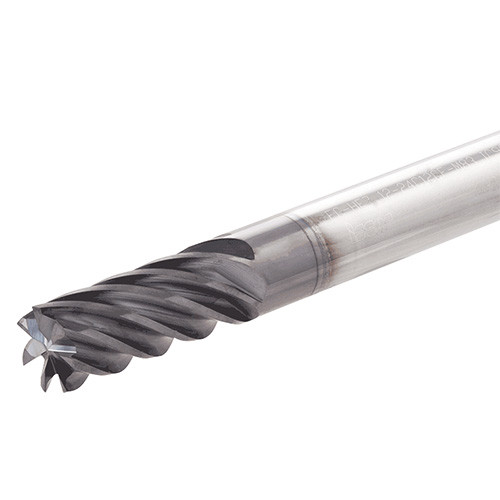

TEC120H7-36C12CF-M95 AH710
7 flute chatter dampening endmill, variable helix and variable pitch, for high speed finishing

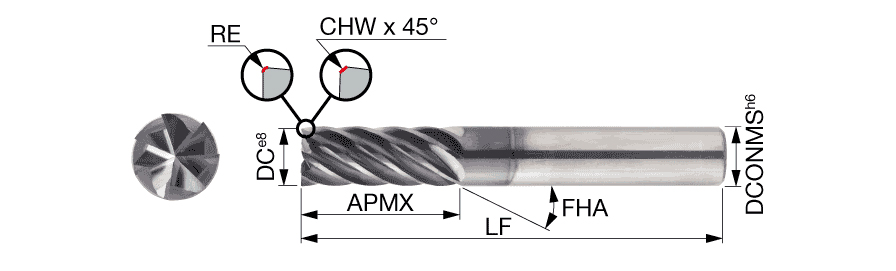

| Cutting Diameter (DC) | 12 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Application | | Shoulder Milling | |
| Depth of Cut Maximum (APMX) | 36 mm | Corner Chamfer Width (CHW) | 0.3 mm |
| Overall Length (OAL) | 95 mm | Grade | AH710 |
| Cutting Edge Material | Carbide | Tool Type | Solid carbide center cutting endmills 90 |
| Coating | TiAlN | Maximum Feed per Tooth (fz(max)) | 0.1 mm/tooth |
| Flute Count (NOF) | 7 | Minimum Feed per Tooth (fz(min)) | 0.04 mm/tooth |
| Flute Helix Angle (FHA) | 37 Degrees | Body Material | Carbide |
| Shank Type | Round | Measurement Type | Metric |
| End Shape | Chamfer | Unit | M |
Product Features
| Family Description | 7 flute chatter dampening endmill, variable helix and variable pitch, for high speed finishing | FamilyName | TEC-H7-CF |
| COO | ISRAEL | BrandName | Tungaloy |
Shipping Info
Weight per item
0.0000
Name
Square & Corner Radius End Mills
FamilyName
TEC-H7-CF
BrandName
Tungaloy
